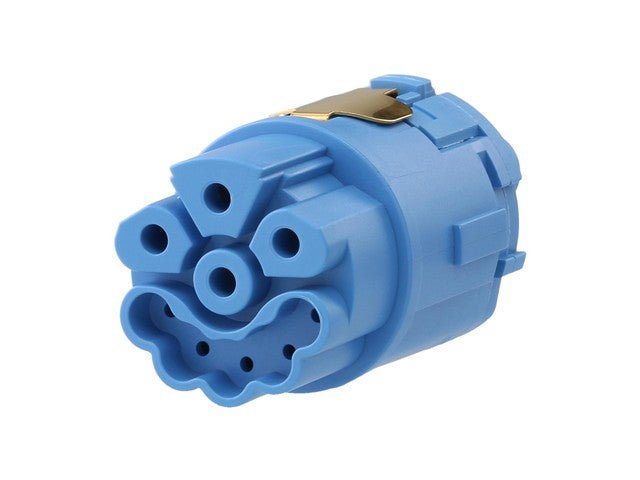

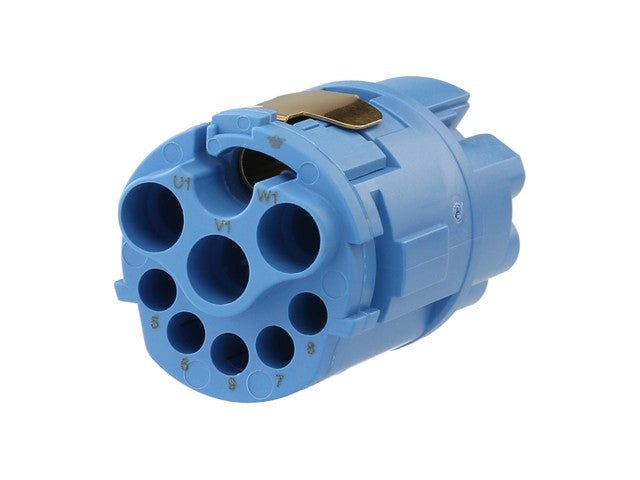

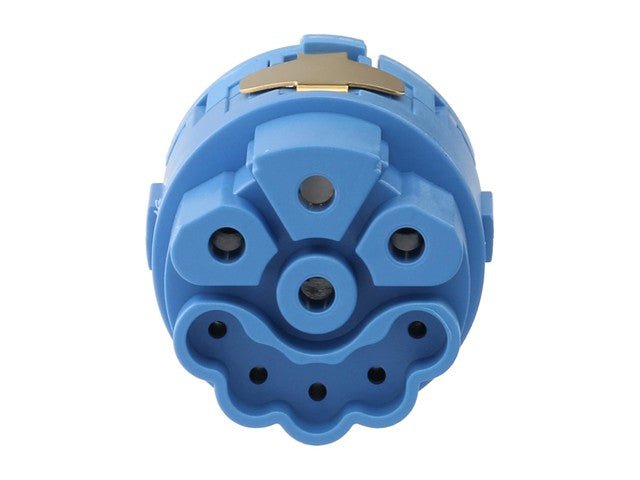

Circular Connector M23 Power Female Crimp Insert 9 Pole(5+3+PE) for 5x1mm/4x2mm Contacts -10/28A @ 250/630VAC Max

M23 Power Female Crimp Insert

Specifications

Type:	Crimp contact insert
Series:	M23 Power
Design:	Socket
Connection technology:	Crimp connection
Number of poles:	9-pole 3/5+PE
Labelling:	5 - 9 U1, V1, W1, PE
Rated voltage:	Power contact: 600V Control contact: 160V
Rated current:	Power contact: 28A Control contact: 8A
Pollution level:	3
Cross-section:	mm²: 0.75 mm²-4 mm² / 0.75 mm²-4 mm²
Contact diameter:	1.0 mm/2.0 mm/
Temperature range:	-40°C to 125°C
Mating cycles:	>=1000
Material:	Insulating material: Polybutylene terephthalate (PBT)/polyamide (PA6)
Colour:	Colour shade: blue
Matching data:	Power connector / Power connector

Additional Information

Device	Crimp Insert
Type	M23 \| Power \| Female \| 5+3+PE

Upgrade your electrical connections with the M23 Power Female Crimp Insert. This durable 9-pole connector, rated for 28A and 600V, ensures reliable performance in extreme conditions. Perfect for efficient power transmission, it features a robust design for hassle-free crimping and longevity. Enhance your projects with this essential component for superior connectivity and safety.
