709401

SKU: 709401

BRAND: Communica

In Stock
R 7.19_{(inc VAT)}
R 6.25_{(ex VAT)}

Collections: Connectors, Prototyping Products

Type: PCB Connectors

Category: Pin Headers

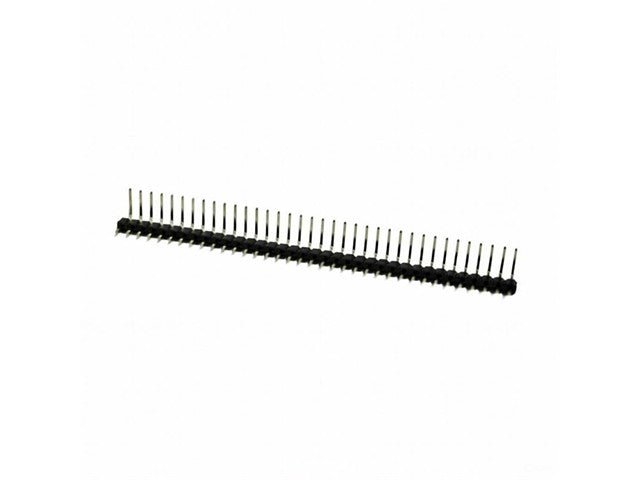

2.54mm PCB Pin Connector • 40 way in Single Row • Right Angled Pins • Gold Plated

PCB Pin Connector

Specifications

Contact Resistance : 30mΩ max.at DC 100 mA
Insulator Resistance : l000MΩ min.at DC 500V
Current Rating : lAMP

Dielectric Withstanding

Voltage : AC 500V For 1 minute
Operating Temperature :-55°C ~ 105°C
Contact : Brass
Housing : PBT &30% Glass Fiber(UL 94V-0)

Additional Information

Group0	Pin Header
Group	PCB Connector
Device	Connector
Type	PCB
Gender	Pin
No. of Contacts	40
No. of Pins	40
Termination	Right Angled Pins
Pin Plating	Gold
Size	2.54mm
Row Positions	Single Row
