7206500000

Name: 7206500000 - Communica [Part No: 7206500000]
Brand: Hummel
SKU: 7206500000
Price: 562.50 ZAR
Availability: InStock

SKU: 7206500000

BRAND: Hummel

R 646.88_{(inc VAT)}
R 562.50_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Connectors

Type: Connector Accessories

Category: Heavy Duty Power Connector Housings & Hoods

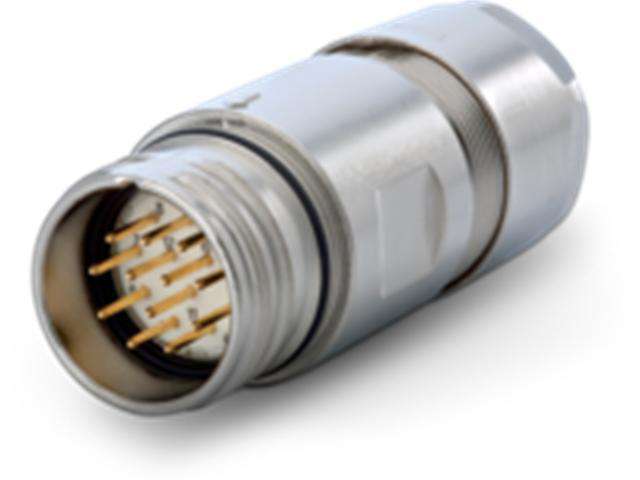

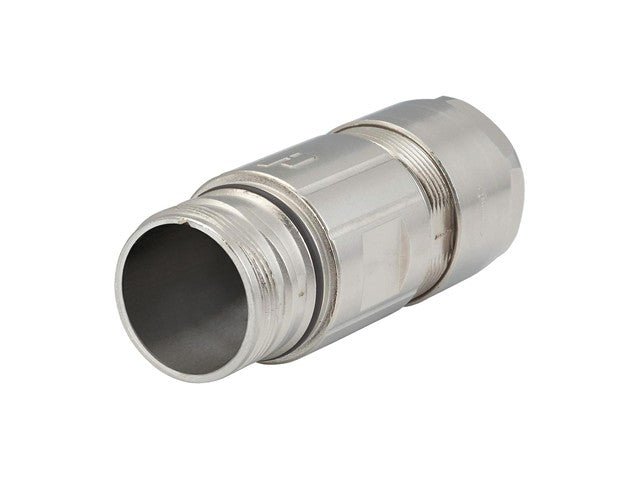

Circular Connector M23 Signal Cable Housing Stright. Male Thread. Cable Clamp OD 7-12mm

M23 Signal Cable Housing

Feature(s)

Suitable for all signal inserts - 6, 7, 9, 12, 16, 17 & 19 Pole

Specifications

Housing type	Coupler
Material housing	Zinc Die Cast, brass
Material housing surface	Nickel
Version	Screw, TWILOCK

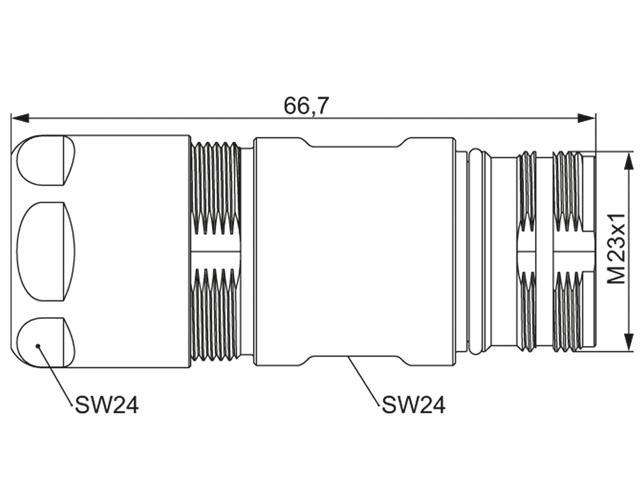

External thread plug-in side	M23 x 1
Locking type
Shield	shielded

Material seals/o-rings	NBR
Wrench size (SW)	24 mm
Cable diameter	7 – 12 mm
Length (L)	66.7 mm
Temperature range	-40°C to +125°C
Protection class	IP 67, IP 69 K

Downloads

Datasheet - 7206500000

Additional Information

Device

Housing

Enhance your connectivity with the M23 Circular Connector Signal Cable, designed for reliability and durability in extreme conditions. With a robust zinc die-cast housing and IP67/IP69K protection, it ensures top performance in any environment. Perfect for applications needing a secure, shielded connection with a cable diameter of 7-12mm. Upgrade your devices with this high-quality connector today!
