7206600000

Name: 7206600000 - Communica [Part No: 7206600000]
Brand: Hummel
SKU: 7206600000
Price: 510.30 ZAR
Availability: InStock

SKU: 7206600000

BRAND: Hummel

R 586.85_{(inc VAT)}
R 510.30_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Connectors

Type: Connector Accessories

Category: Heavy Duty Power Connector Housings & Hoods

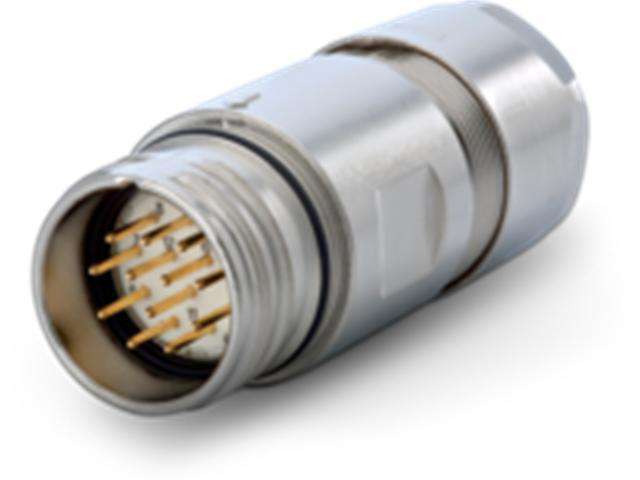

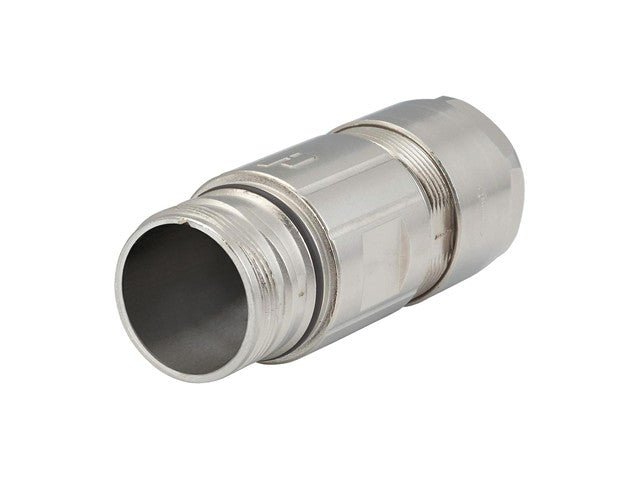

Circular Connector M23 Signal Cable Housing Stright. Male Thread. Cable Clamp OD 11~17mm

M23 Signal Cable Housing

Feature(s)

Suitable for all signal inserts - 6, 7, 9, 12, 16, 17 & 19 Pole

Specifications

Housing Type: Coupler
Material (Housing): Zinc Die Cast, Brass
Housing Surface Material: Nickel
Version: Screw, TWILOCK
External Thread (Plug-in Side): M23 × 1
Shield: Shielded
Material (Seals/O-rings): NBR
Allen Key/Torx: –
Wrench Size (SW): 24 mm
Cable Diameter: 11–17 mm

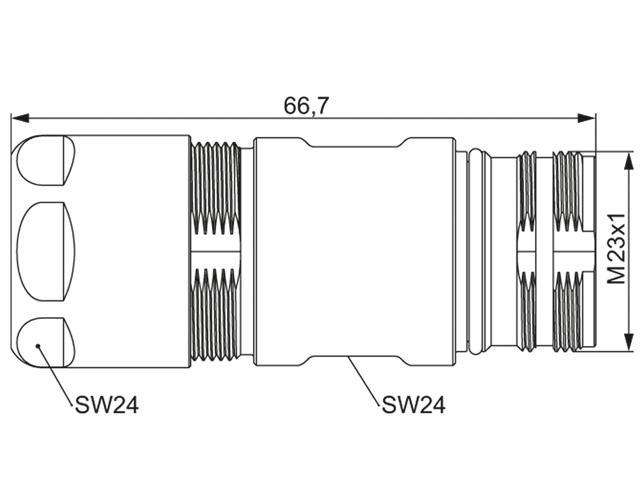

Length (L): 66.7 mm
Temperature Range: -40°C to +125°C
Protection Class: IP67, IP69K

Interpreted Structure:

Locking Type: Screw / TWILOCK
Shield: Shielded

Downloads

Datasheet - 7206600000

Additional Information

Device

Housing

Enhance your connectivity with the 7206600000 M23 Signal Cable Connector. Designed for durability with a nickel-plated zinc die cast housing, this IP67/IP69K rated connector ensures reliable performance in extreme conditions. Experience hassle-free installation and a secure connection with its robust screw locking mechanism, perfect for various industrial applications.
