7410000000

Name: 7410000000 - Communica [Part No: 7410000000]
Brand: Hummel
SKU: 7410000000
Price: 292 ZAR
Availability: InStock

SKU: 7410000000

BRAND: Hummel

R 335.80_{(inc VAT)}
R 292.00_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Connectors

Type: Connector Accessories

Category: Heavy Duty Power Connector Housings & Hoods

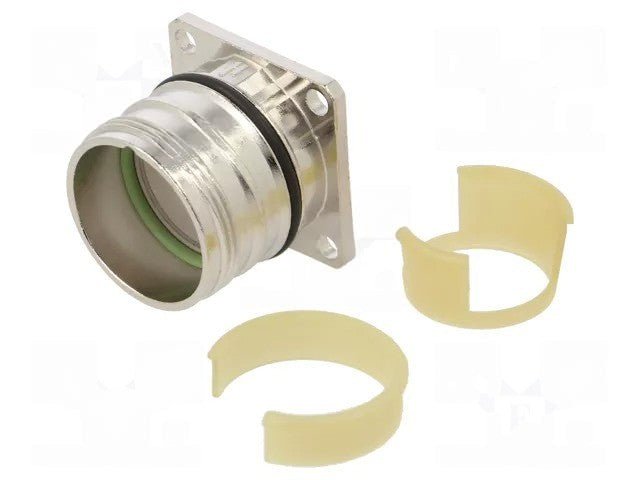

Circular Connector M23 Signal Panel, Square Flange Housing, Male Thread with Anti-Vibrating O Ring

M23 Signal Cable Circular Connector

Feature(s)

3,2MM Mounting Holes
Suitable for all signal inserts - 6, 7, 9, 12, 16, 17 & 19 Pole

Specifications

Material housing	Zinc Die Cast
Material housing surface	Nickel
Installation type	Rear wall
Version	Screw, TWILOCK, with vibration protection
External thread plug-in side	M23 x 1
Locking type
Shield	unshielded
Seal type	O-Ring
Material seals/o-rings	NBR

Coding position

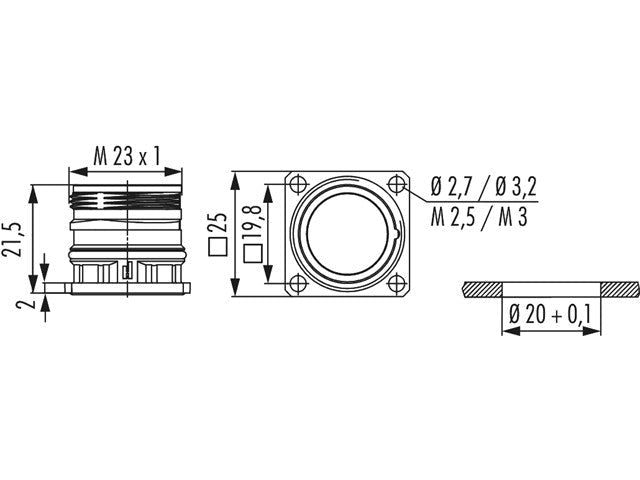

Panel hole	Ø 20 + 0,1 mm
Flange	25 x 25 mm
Hole distance	19.8 mm
Hole diameter	4 x Ø 3,2 mm
Length (L)	21.5 mm
Protection class	IP 67, IP 69 K
Temperature range	-40°C to +125°C

Downloads

Datasheet - 7410000000

Additional Information

Device

Connector

Upgrade your connectivity with the 7410000000 M23 Signal Panel Connector. Engineered for durability with a zinc die-cast housing and anti-vibration O-ring, this reliable connector ensures optimal performance in demanding environments. Enjoy easy installation and superior protection against dust and moisture with its IP67 and IP69K ratings. Perfect for industrial applications, it guarantees a secure and stable connection every time.
