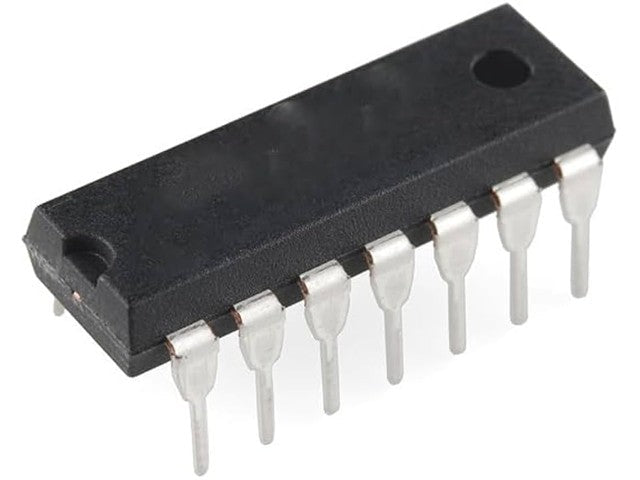

7412

Name: 7412 - Communica [Part No: 7412]
Brand: Communica
SKU: 7412
Price: 9 ZAR
Availability: InStock

SKU: 7412

BRAND: Communica

R 10.35_{(inc VAT)}
R 9.00_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Semiconductors

Type: Logic ICs

Category: Logic Gates

Gate Nand Triple 3 Input OC

Specifications

Logic Function: Triple 3-input NAND
Output Type: Open-Collector (OC) - requires pull-up resistors to operate
Package: 14-pin DIP
Technology: TTL (74LS12 is the common Schottky variant)
Input Logic Levels:

VIL≤0.7Vcap V sub cap I cap L end-sub is less than or equal to 0.7 cap V

𝑉𝐼𝐿≤0.7𝑉

VIH≥2.0Vcap V sub cap I cap H end-sub is greater than or equal to 2.0 cap V

𝑉𝐼𝐻≥2.0𝑉

Max Output Voltage: 5.5V (Open Collector)

Pin Configuration:

Gates: 3 Independent 3-Input NAND Gates
Power:

VCCcap V sub cap C cap C end-sub

𝑉𝐶𝐶

(Pin 14), GND (Pin 7)

Additional Information

Device

Gate Nand

Enhance your electronic projects with the 7412 Triple 3-Input NAND Gate. This reliable TTL logic component features open-collector outputs for versatile applications, ensuring optimal performance with pull-up resistors. Perfect for both hobbyists and professionals, the 7412 offers the flexibility you need for innovative designs.
