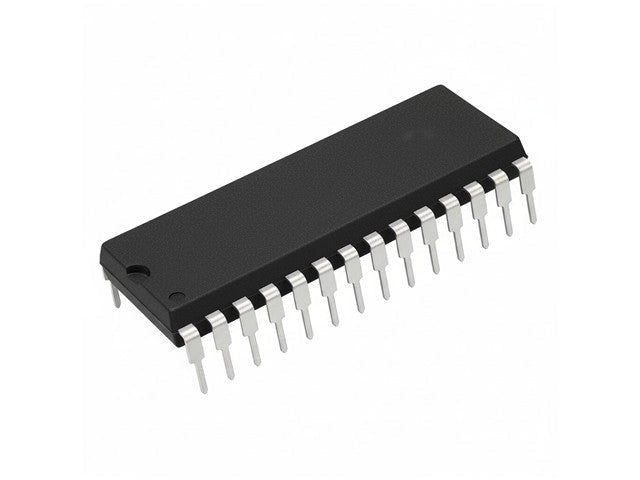

74150

• Logic Family: TTL (74xx series)
• Function: 16-to-1 data selector / multiplexer
• Package: 24-pin DIP (24PD)
• Number of Data Inputs: 16 (D0–D15)
• Select Inputs: 4 (A, B, C, D)
• Enable/Strobe Input: 1 (active LOW)
• Output: 1 (inverted output, Y)
• Supply Voltage (Vcc): 4.75 V – 5.25 V (nominal 5 V)
• Absolute Max Vcc: ~7 V
• Input Voltage Range: –0.5 V to Vcc
• Logic HIGH (VIH): ≥ 2.0 V
• Logic LOW (VIL): ≤ 0.8 V
• Output HIGH (VOH): ≥ 2.4 V
• Output LOW (VOL): ≤ 0.4 V
• Propagation Delay: ~20–35 ns typical
• Power Dissipation: ~50 mW typical
• Operating Temperature: 0 °C to 70 °C

• Selects one of 16 data lines
• Single output (inverted)
• Strobe/enable control
• Standard TTL compatibility
• Suitable for data routing and bus selection

Typical Applications

• Data routing
• Bus multiplexing
• Memory selection
• Control systems
• Digital switching networks
