7420000000

Name: 7420000000 - Communica [Part No: 7420000000]
Brand: Hummel
SKU: 7420000000
Price: 374.23 ZAR
Availability: InStock

SKU: 7420000000

BRAND: Hummel

R 430.36_{(inc VAT)}
R 374.23_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Connectors

Type: Connector Accessories

Category: Heavy Duty Power Connector Housings & Hoods

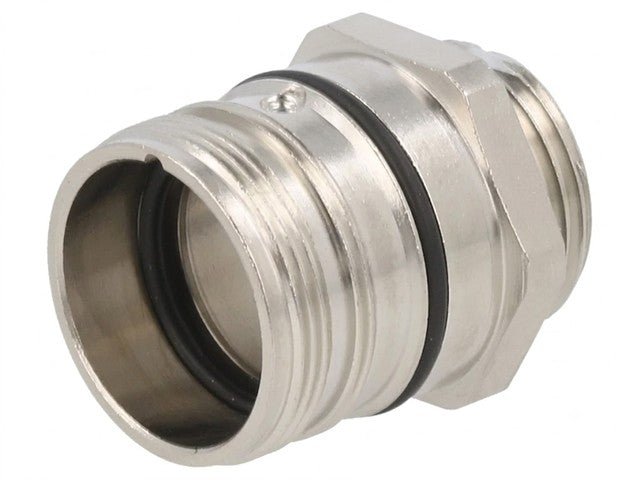

Circular Connector M23 Signal Panel Jam Nut Housing Male Thread. Front Mounting. With Anti-Vibrating O Ring

M23 Signal Panel Jam Nut Housing

Feature(s)

M20X1,5 Jam Nut
NOTE: For Male Inserts Only - 6, 7, 9, 12, 16, 17 & 19 Pole

Specifications

Material housing	Zinc Die Cast, brass
Material housing surface	Nickel
Insert	Pin
Installation type	Rear wall
Version	Screw, for pin inserts
External thread (AG)	M20 x 1,5
External thread plug-in side	M23 x 1
Locking type	Screw
Shield	unshielded

Seal type	O-Ring
Material seals/o-rings	NBR
Coding position

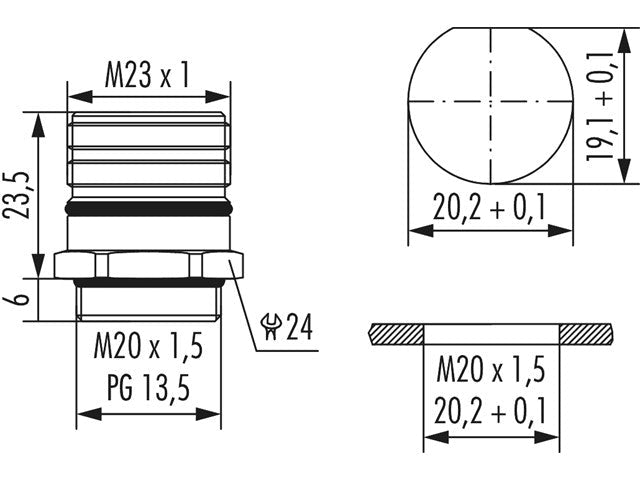

Panel hole	Ø 20,2 + 0,1 mm
Drill form	D 19,1 + 0,1, D Ø 20,2 + 0,1 mm
Length (L)	29.5 mm
Wrench size (SW)	24 mm
Protection class	IP 67, IP 69 K
Temperature range	-40°C to +125°C

Downloads

Datasheet - 7420000000

Additional Information

Device

Housing

Upgrade your connectivity with the M23 Signal Panel Connector, designed for durability and reliability. Featuring a robust zinc die-cast housing and an anti-vibrating O-ring, this connector ensures secure, long-lasting performance in challenging environments. With an IP67 and IP69K protection class, it's perfect for both indoor and outdoor applications, making it an essential choice for your signal connection needs.
