SKU: 7425000000

BRAND: Hummel

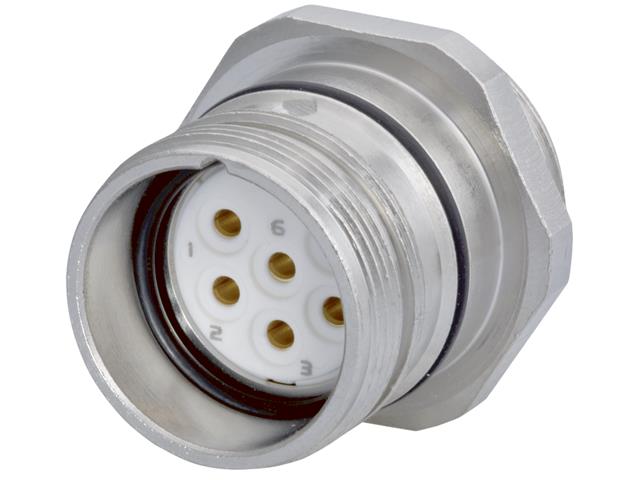

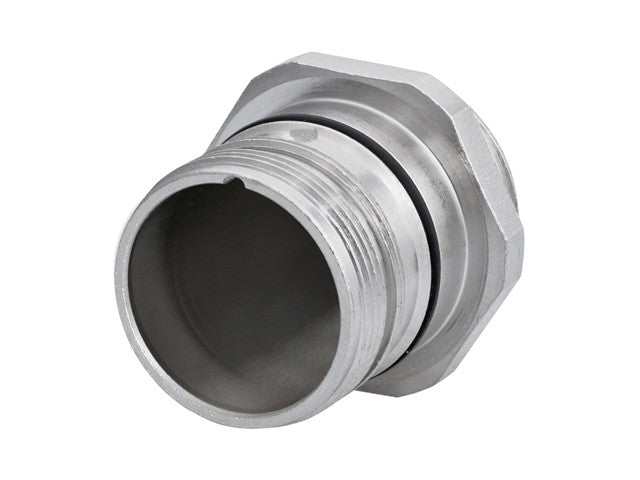

Circular Connector M23 Single. Panel Jam Nut Housing Male Thread. Front Mounting. with Anti-Vibrator. O ring

M23 Single Circular Connector


Material housing brass,
Zinc Die Cast
Material housing surface Nickel
Installation type Front wall
External thread (AG) M25 x 1,5
External thread plug-in side M23 x 1
Locking type Screw
Shield unshielded
Seal type O-Ring
Material seals/o-rings NBR
Coding position

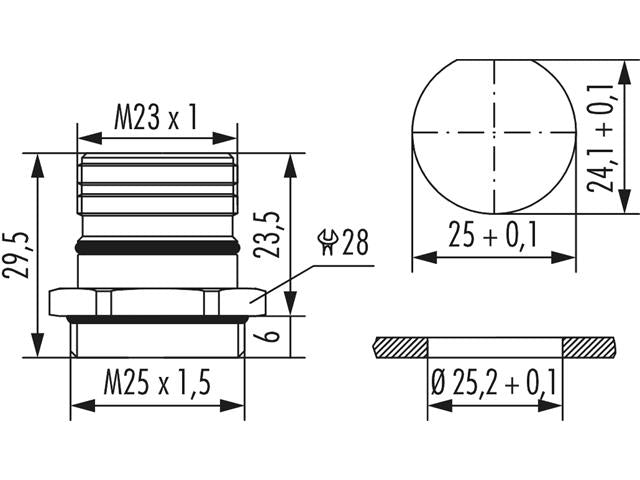

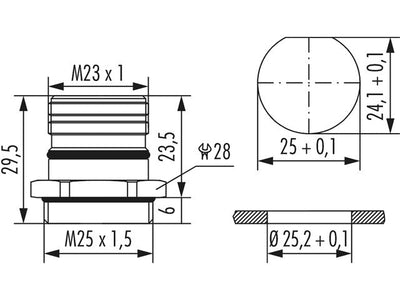

Panel hole Ø 25,2 + 0,1 mm
Drill form D 24,1 + 0,1,
D Ø 25 + 0,1,
DD 24,1 + 0,1,
DD Ø 25 + 0,1 mm
Length (L) 29.5 mm
Wrench size (SW) 28 mm
Protection class IP 67,
IP 69 K
Temperature range -40°C to +125°C

Additional Information

Device Connector
Type M23 Signle | Circular
