7437

Name: 7437 - Communica [Part No: 7437]
Brand: Communica
SKU: 7437
Price: 17.95 ZAR
Availability: InStock

SKU: 7437

BRAND: Communica

R 20.64_{(inc VAT)}
R 17.95_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Semiconductors

Type: Logic ICs

Category: Logic Gates

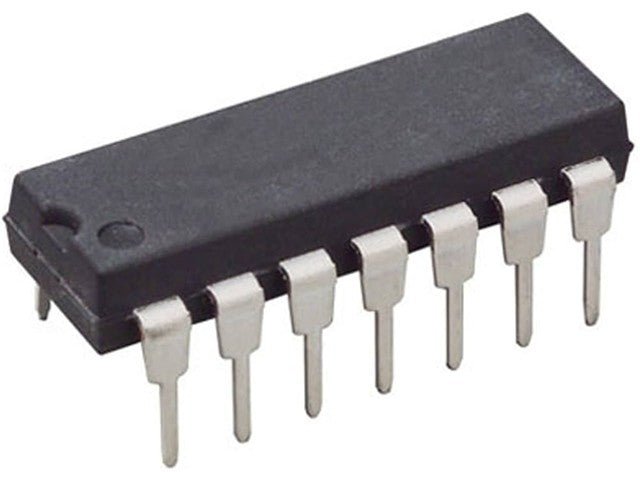

Buffer NAND Positive Quad 2-INP 14PD

Specifications

Function: Four independent 2-input NAND buffer gates.
Buffer Capability: Designed for high-drive capacity, allowing it to drive a higher number of other gates compared to standard NAND gates.
Logic: Positive-NAND (output is low only if all inputs are high).
Package: 14-pin Dual In-line Package (DIP).
Technology: Often found in TTL (7437) or Low-power Schottky (74LS37) technologies.
Operating Temperature: Typically 0°C to 70°C.
Supply Voltage (
VCCcap V sub cap C cap C end-sub
𝑉𝐶𝐶
): Generally 4.75V to 5.25V.

Common Applications:

Buffer Registers: Ideal for increasing driving capability in digital circuits.
Bus Drivers: Used as I/O ports or bidirectional bus drivers.
TTL Interfacing: Suitable for driving higher fan-out TTL loads.

Additional Information

Keywords	NAND
Device	Buffer

Enhance your digital circuits with the 7437 Buffer NAND Positive Quad. This high-drive capacity buffer is perfect for boosting signal integrity and managing multiple connections in TTL applications. With four independent 2-input gates, it ensures reliable performance for bus drivers and buffer registers. Upgrade your projects with this efficient 14-pin DIP solution, designed for optimal functionality in a range of temperatures.
