7439100000

SKU: 7439100000

BRAND: Hummel


🚚
Delivery time: 2-5 working days for South Africa
In stock - Ready for immediate dispatch
Free shipping for orders over R1,000.00

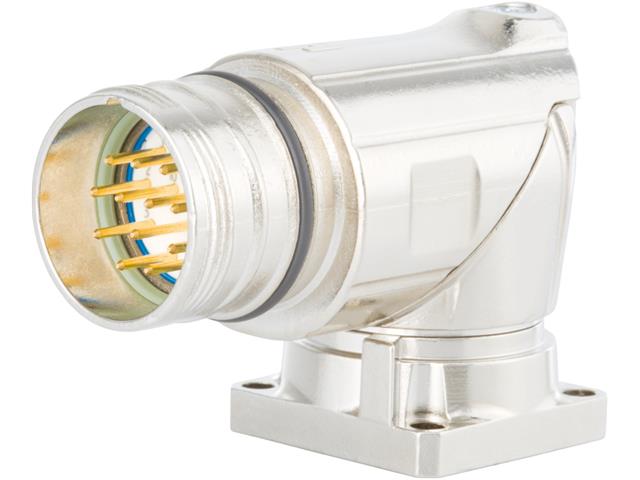

Circular Connector M23 Signal Right Angle Housing Male Thread 330°. Rotatable 28mm Square. Flange 4x3,2mm Mounting Holes

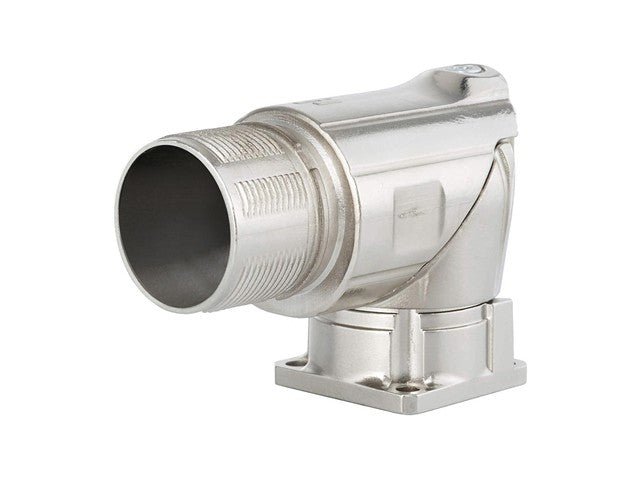

M23 Signal Right Angle Insert Housing

Feature(s)

Mates with 7106400000/7106500000/7106600000 Signal Plug Housings

Specifications

Housing type Panel angled
Material housing Zinc Die Cast
Material housing surface blue passivated
Version right angled,
TWILOCK
External thread plug-in side M23 x 1
Locking type Screw
Shield unshielded
Seal type O-Ring
Material seals/o-rings NBR
Rotatable 330 °

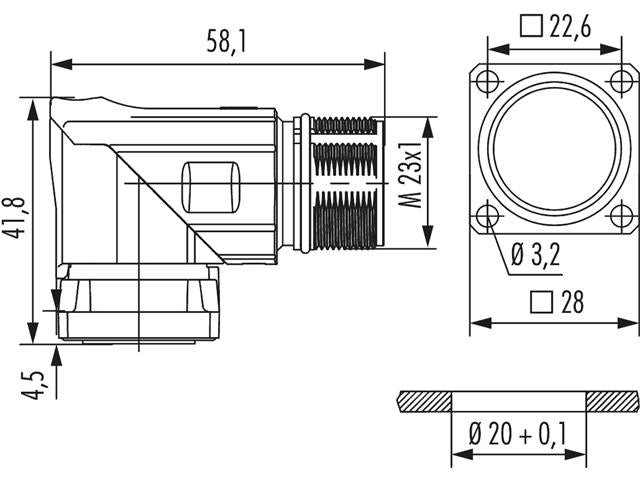

Panel hole Ø 20 + 0,1 mm
Flange 28 x 28 mm
Hole distance 22.6 mm
Hole diameter 4 x Ø 3,2 mm
Temperature range -40°C to +125°C
Protection class IP 67,
IP 69 K


Additional Information

Device Insert Housing
Enhance your connectivity with our M23 Signal Right Angle Connector. Designed for durability and ease of installation, this rotatable connector features a robust zinc die-cast housing and an IP67/IP69K protection rating, ensuring reliable performance in any environment. Perfect for tight spaces, its angled design allows for seamless integration into your projects while maintaining optimal signal integrity.
