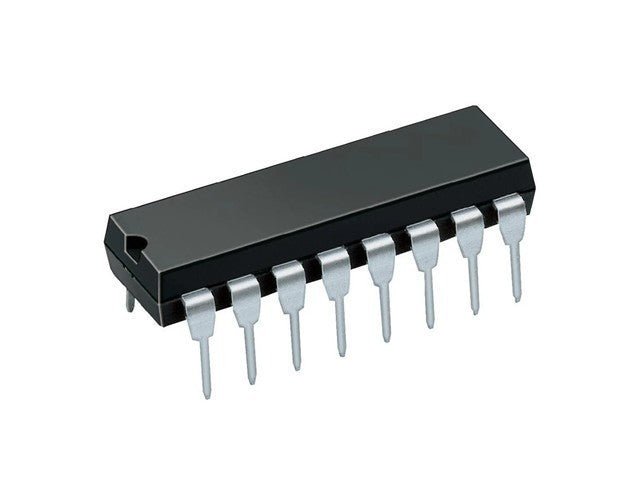

74426

Name: 74426 - Communica [Part No: 74426]
Brand: Communica
SKU: 74426
Price: 18.40 ZAR
Availability: InStock

SKU: 74426

BRAND: Communica

R 21.16_{(inc VAT)}
R 18.40_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over ZAR 1,000.00

Collections: Semiconductors

Type: Logic ICs

Category: Logic Gates

Quad Gates with Three-State Outputs and Active Low

Specifications

Parameter	Value
Logic Family	TTL
Supply Voltage (Vcc)	4.75 – 5.25 V
Input Voltage (High)	2.0 V minimum
Input Voltage (Low)	0.8 V maximum
Output High Voltage (VOH)	2.4 V minimum
Output Low Voltage (VOL)	0.4 V maximum
Output Current (High, Low)	±8 mA
Power Dissipation	~40 mW typical
Propagation Delay	~15 ns typical

Feature

Four independent gates in a single IC package.
Three-state outputs allow bus sharing.
Active low outputs.
TTL compatible.

Applications

Bus-oriented digital systems
Data multiplexing
Microprocessor/microcontroller bus interfacing
Digital logic circuits requiring controlled tri-state outputs

Additional Information

Device

Logic Gate

Enhance your digital projects with the 74426 Quad Gates, featuring three-state outputs for seamless bus sharing. With TTL compatibility and low power dissipation, these gates deliver efficient performance in microcontroller interfacing and digital logic circuits. Upgrade your designs with reliable, high-speed operation and active low outputs today!
