7442A

Name: 7442A - Communica [Part No: 7442A]
Brand: Communica
SKU: 7442A
Price: 39.50 ZAR
Availability: InStock

SKU: 7442A

BRAND: Communica

R 45.43_{(inc VAT)}
R 39.50_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over ZAR 1,000.00

Collections: Semiconductors

Type: Logic ICs

Category: Encoder & Decoder ICs

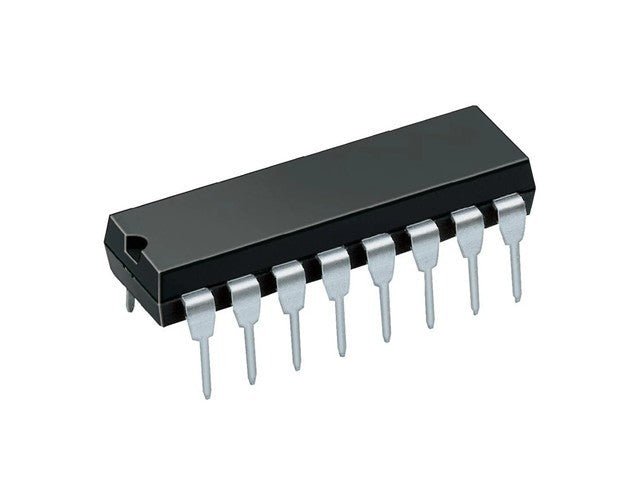

Decoder 4Line-BCD to 10Line Dec 16PD

Specifications

Type: BCD-to-decimal decoder / demultiplexer
Inputs: 4-line BCD (A, B, C, D)
Outputs: 10 lines (0–9), active LOW
Package: 16-pin DIP (16PD)
Logic Family: TTL 74xx
Supply Voltage (Vcc): typically 5 V (4.75 – 5.25 V)
Function: Converts 4-bit BCD input to one of ten decimal outputs
Output Behavior: Only one output goes LOW for valid BCD (0000–1001); all HIGH for invalid inputs
Propagation Delay: ~15–30 ns (typical)
Output Current (LOW): up to ~8 mA
Operating Temperature: 0 °C to +70 °C (commercial range)

Applications

Decimal display decoding
Data selection/demultiplexing
Digital control circuits

Pin Summary (16-pin DIP)

Pins 1–7, 9–11: Outputs 0–9
Pins 12–15: BCD inputs (A–D)
Pin 8: GND
Pin 16: VCC

Additional Information

Device

Decoder

Unlock seamless data selection with the 7442A BCD-to-decimal decoder. This 4-line BCD input converts to 10 active LOW outputs, ideal for digital control circuits and decimal display decoding. With a compact 16-pin DIP design and fast propagation delay, it ensures reliable performance for your electronic projects. Upgrade your systems with this efficient decoding solution today!
