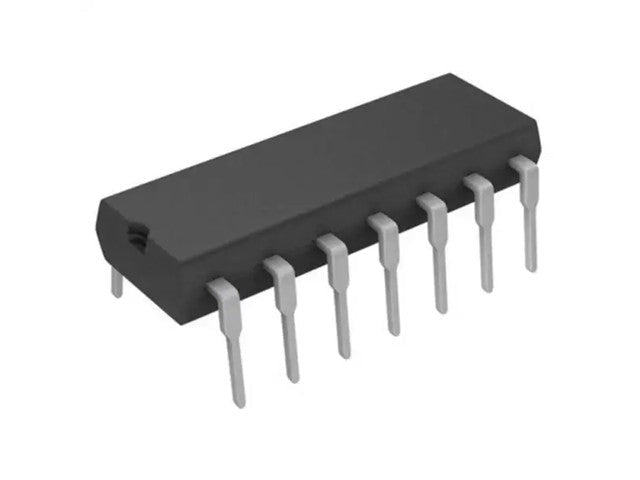

7451

SKU: 7451

BRAND: Communica


🚚
Delivery time: 2-5 working days for South Africa
In stock - Ready for immediate dispatch
Free shipping for orders over R1,000.00
Dual 2-Wide 2-Input AND-OR-Invert Gate

Specifications

Number of Gates:

2 Gate

Number of Input Lines:

2 Input

Number of Output Lines:

1 Output

High Level Output Current:

– 16 mA

Low Level Output Current:

0.4 mA

Propagation Delay Time:

20 ns

Supply Voltage – Max:

5.25 V

Supply Voltage – Min:

4.75 V

Minimum Operating Temperature:

0 C

Maximum Operating Temperature:

+ 70 C

Mounting Style:

Through Hole

Package/Case:

PDIP-14

Packaging:

Tube

Function:

AND-OR-Invert

Height:

4.57 mm

Input Type:

TTL

Length:

19.3 mm

Operating Temperature Range:

0 C to + 70 C

Output Type:

TTL

Series:

SN74LS51

Width:

6.35 mm

Logic Type:

2-Input AND-OR-INVERT

Number of Bits:

2 bit

Operating Supply Current:

14 uA

Operating Supply Voltage:

5 V



Additional Information

Keywords AND-OR-Invert, AND, OR, NOT
Device Logic Gate
Enhance your digital circuits with the 7451 Dual 2-Wide 2-Input AND-OR-Invert Gate. This versatile logic gate features fast propagation delay and reliable output, making it perfect for efficient signal processing. With a compact design and robust performance, it's an essential component for your electronic projects.
