Name: 7454 - Communica [Part No: 7454]
Brand: Communica
SKU: 7454
Price: 3.95 ZAR
Availability: InStock

SKU: 7454

BRAND: Communica

R 4.54_{(inc VAT)}
R 3.95_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over ZAR 1,000.00

Collections: Semiconductors

Type: Logic ICs

Category: Gate Drivers

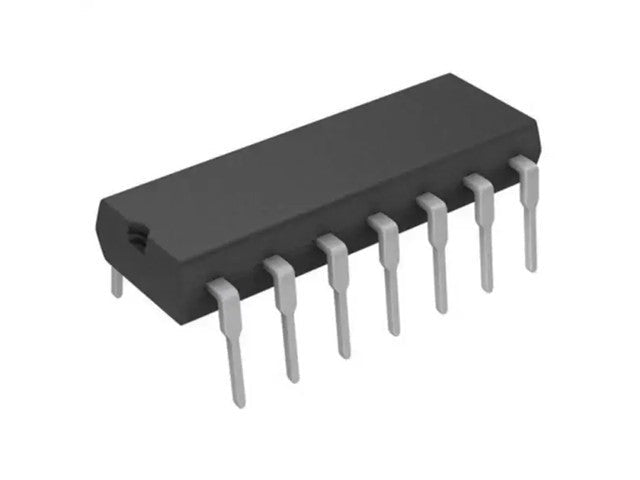

Expandable 4-Wide 2-Input AND-OR-Invert Gate

Specifications

Supply voltage (VCC):5 V – 5.5 V
Operating temperature:
- SN7454: 0 °C to 70 °C
- SN5454 (mil-grade): −55 °C to +125 °C
Propagation delay:~10 ns – 50 ns (typical TTL)
Input HIGH voltage (VIH):≥ 2.0 V
Input LOW voltage (VIL):≤ 0.8 V
Output HIGH voltage (VOH):≥ 2.4 V (TTL typical ~3.5 V)
Output LOW voltage (VOL):≤ 0.4 V
Input current:
- HIGH: ~20–40 µA
- LOW: ~−0.4 mA
Output current:
- Sink: up to ~16 mA
- Source: ~0.4–0.8 mA

Feature

TTL-compatible inputs and outputs
High-speed switching
Low power consumption (LS versions)
Designed for digital logic processing and control circuits
Standard DIP-14 package for breadboard or PCB use

Additional Information

Device

Logic Gate

Unlock powerful digital logic with the SN7454 Expandable 4-Wide 2-Input AND-OR-Invert Gate. Designed for high-speed switching and low power consumption, this TTL-compatible component ensures reliable performance in various circuits, making it perfect for your next project. The standard DIP-14 package allows for easy integration into breadboards or PCBs, providing value and versatility for your electronics needs.
