7482

Name: 7482 - Communica [Part No: 7482]
Brand: Communica
SKU: 7482
Price: 21 ZAR
Availability: InStock

SKU: 7482

BRAND: Communica

R 24.15_{(inc VAT)}
R 21.00_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Semiconductors

Type: Logic ICs

Category: TTL Logic IC's

2Bit Binary Full Adder

Specifications

Supply voltage (Vcc):5 V ±5 % (commercial)
Operating temperature:
- 0 °C to +70 °C (commercial 7482)
- −55 °C to +125 °C (military 5482)
Logic family:TTL (compatible with TTL/DTL systems)

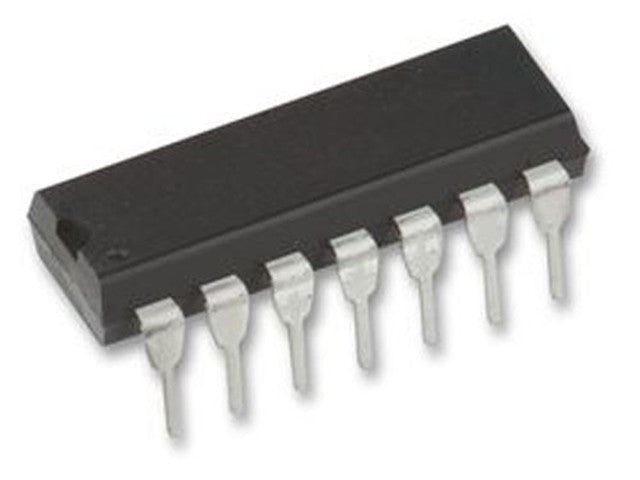

Pin configuration (14-pin DIP)
Vcc:Pin 14
GND:Pin 11
Inputs:
- A1, B1 → bit-1 inputs
- A2, B2 → bit-2 inputs
- Cin → carry-in
Outputs:
- S1 → sum bit 1
- S2 → sum bit 2
- C2 → carry-out
NC (no connection):pins 6, 7, 8, 9
Logic operation
The IC performs:
(A2A1)+(B2B1)+Cin(A_2A_1) + (B_2B_1) + C_{in}
Outputs:
S1, S2 → sum bits
C2 → final carry
Used in ripple-carry adders or cascaded to form larger multi-bit adders.
Applications
Binary adders in digital systems
ALUs and calculators
Data-handling and control systems
Parallel arithmetic circuits

Additional Information

Device

Adder

Enhance your digital projects with the 7482 2Bit Binary Full Adder. This reliable TTL-compatible IC delivers efficient binary addition for ALUs, calculators, and data systems, ensuring precise results with minimal power consumption. Perfect for creating ripple-carry adders or scaling up to larger multi-bit configurations, it operates across a wide temperature range for versatile applications. Upgrade your circuit design today!
