7484

Name: 7484 - Communica [Part No: 7484]
Brand: Communica
SKU: 7484
Price: 11.95 ZAR
Availability: InStock

SKU: 7484

BRAND: Communica

R 13.74_{(inc VAT)}
R 11.95_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Semiconductors

Type: Memory ICs

Category: TTL Static RAM IC's

16-Bit Random Access Memory

Specifications

Type: Static Random Access Memory (SRAM)
Organization: 16 bits total (often arranged as 16 × 1-bit)
Technology: TTL compatible

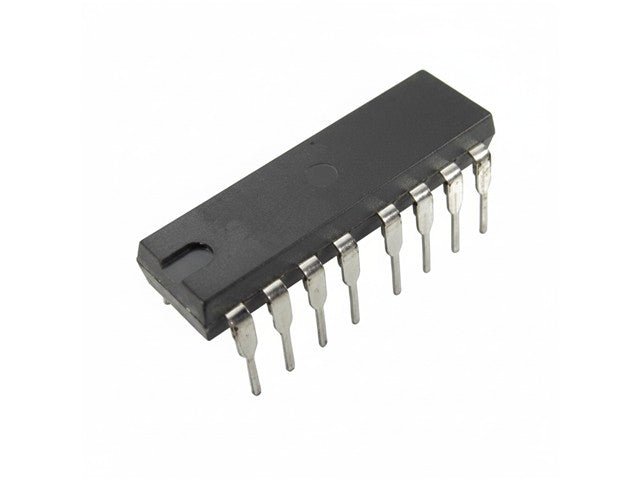

Package: 14-pin DIP (typical for 74xx series)
Supply Voltage (Vcc):75 V – 5.25 V
Address Inputs: 4 address lines (select 1 of 16 locations)
Data Inputs: 1 data input
Data Outputs: 1 data output
Control Inputs:
- Write Enable (WE)
- Chip Select (CS)
Access Time: ~25 ns (typical, depends on manufacturer)
Write Time: ~20–30 ns
Operating Temperature:
0 °C to 70 °C (commercial)
Power Dissipation: ~150 mW (typical TTL)
Logic Levels:
- Input HIGH: ≥ 2.0 V
- Input LOW: ≤ 0.8 V
Output Current:
- Source: −400 µA
- Sink: 8 mA
Fan-Out: 10 TTL loads (typical)

Feature

Fully static operation (no refresh required)
TTL-compatible inputs and outputs
Random read/write capability
Suitable for small buffer or register storage in digital systems

Additional Information

Keywords	RAM
Device	Memory

Upgrade your digital systems with the 7484 16-Bit Static Random Access Memory (SRAM). This reliable memory solution offers fast access times of ~25 ns and efficient power dissipation, making it perfect for buffers and registers. Enjoy seamless operation with TTL compatibility and no refresh required, ensuring your devices perform at their best.
