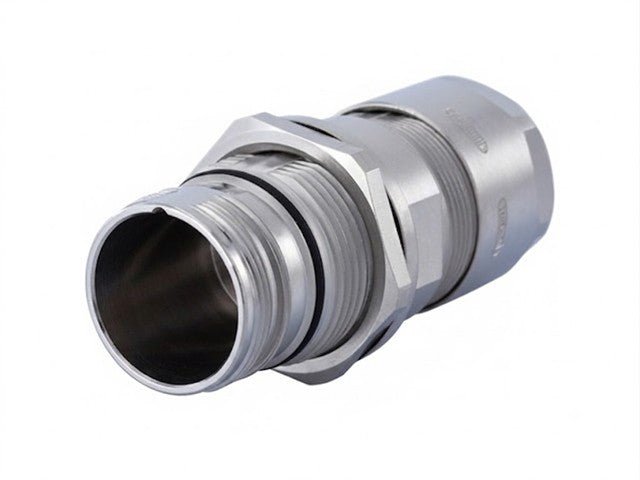

Circular Connector M23 Signal Panel Jam Nut Housing/Cable Clamp Male Thread. Cable OD 7-12mm
M23 Signal Panel Circular Connector
Feature(s)
Suitable for all signal inserts - 6, 7, 9, 12, 16, 17 & 19 Pole
Specifications
- Material (Housing): Zinc Die Cast, Brass
- Housing Surface Material: Nickel
- Installation Type: Rear Wall
- Version: Screw, TWILOCK
- External Thread (AG): M25 × 1.5
- External Thread (Plug-in Side): M23 × 1
- Shield: Shielded
- Seal Type: O-Ring
- Material (Seals/O-rings): NBR
- Coding Position: Ø 25 + 0.1 mm
- Wall Thickness: Max. 8 mm
- Length (L) : 66.7 mm
- Wrench size (SW1/SW2) : 24/24 mm
- Cable diameter : 11 – 17 mm
- Protection class : IP 67 , IP 69 K
- Temperature range :-40°C to +125°C
Downloads
Additional Information
Upgrade your connectivity with the 7486600000 M23 Signal Panel Connector. Designed for robust performance, this durable, nickel-plated connector ensures reliable signal transmission with an IP67/IP69K rating, perfect for harsh environments. Its easy installation and compatibility with cable diameters of 7-12mm make it an ideal choice for various applications. Enhance your systems with this premium connector today!
