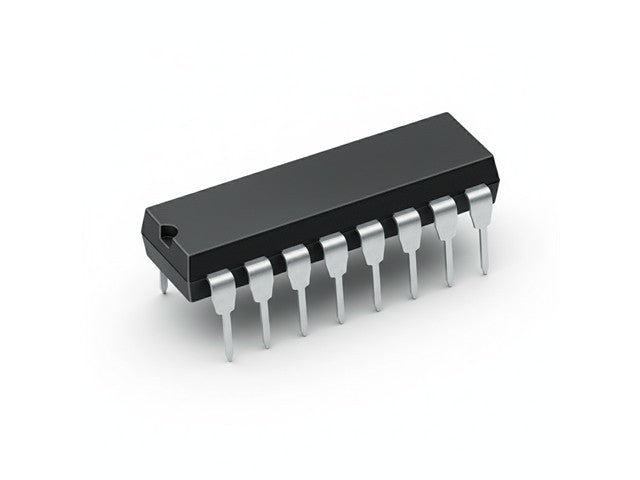

7496

Name: 7496 - Communica [Part No: 7496]
Brand: Communica
SKU: 7496
Price: 21 ZAR
Availability: InStock

SKU: 7496

BRAND: Communica

R 24.15_{(inc VAT)}
R 21.00_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over ZAR 1,000.00

Collections: Semiconductors

Type: Logic ICs

Category: Shift Register IC's

5-Bit Parallel-In/Parallel-Out Shift Register, Asynchronous Preset

Specifications

Logic family: TTL (74LS)
Supply Voltage (Vcc): 4.5 – 5.25 V nominal (TTL logic)
Max Supply Voltage: up to ~7 V (device absolute limits)
Input Voltage Range: –0.5 V to Vcc (up to ~7 V)
Operating Temperature: 0 °C to +70 °C (commercial)
Input Current (Iin): –30 µA to 1 mA typical
Output Voltage (Vout): –0.5 V to Vcc (High state)
Output Current (IOH): ~‑400 µA (High)
Output Current (IOL): ~8 mA (Low)
Propagation Delay: ~25 ns typical (depends on exact variant)
Total Supply Current: ~12 mA typical

Additional Information

Device

Shift Register

Discover the 7496 5-Bit Parallel-In/Parallel-Out Shift Register, designed for seamless data handling in TTL logic applications. With fast propagation delays, reliable input/output performance, and a wide voltage range, this versatile device enhances your electronic projects, ensuring efficiency and precision. Upgrade your circuit designs with the 7496 for optimal performance and reliability.
