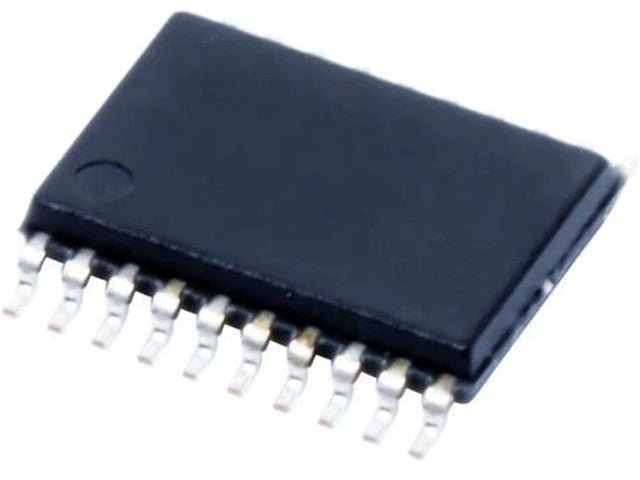

74ACT541BM1

Name: 74ACT541BM1 - Communica [Part No: 74ACT541BM1]
Brand: Communica
SKU: 74ACT541BM1
Price: 4.95 ZAR
Availability: InStock

SKU: 74ACT541BM1

BRAND: Communica

R 5.69_{(inc VAT)}
R 4.95_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Semiconductors

Type: Logic ICs

Category: IC - Buffers & Line Drivers

Octal Bus Buffer with 3-State Outputs (Non-Inverted)

Specifications

Supply Voltage (VCC):5 V – 5.5 V (typical 5 V operation)
Input Logic Levels: TTL-compatible
Output Current (IOH/IOL): ±24 mA (typical drive capability)
Propagation Delay (tpd): ~4 – 8 ns (typical, depending on load)
High-Level Output Voltage (VOH): ≥ 2.4 V
Low-Level Output Voltage (VOL): ≤ 0.55 V

Package Information

Package Type: SOIC / SO-20 (BM1 package variant)
Pin Count: 20 pins
Mounting Type: Surface Mount

Additional Information

Keywords	Advanced CMOS, High Speed, TTL, Buffer
Device	Buffer

Enhance your digital circuits with the 74ACT541BM1 Octal Bus Buffer, featuring high-speed 3-state outputs and TTL compatibility. With a typical drive capability of ±24 mA and low propagation delay, this buffer ensures efficient signal transmission. Ideal for surface mount applications, it delivers reliable performance in compact designs. Upgrade your projects with this advanced CMOS buffer today!
