74ALS86

Name: 74ALS86 - Communica [Part No: 74ALS86]
Brand: Communica
SKU: 74ALS86
Price: 16.50 ZAR
Availability: InStock

SKU: 74ALS86

BRAND: Communica

R 18.98_{(inc VAT)}
R 16.50_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Semiconductors

Type: Logic ICs

Category: Logic Gates

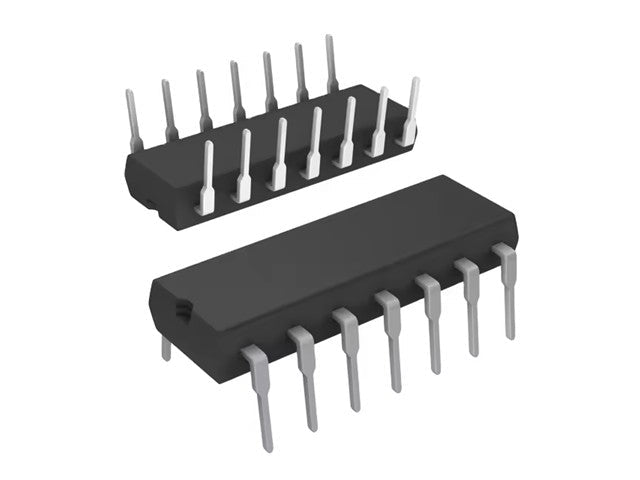

Quadruple 2-Input Exclusive-OR Gates 14PIN DIP

Specifications

Operating Voltage: 4.5V to 5.5V (Nominal 5V).
Propagation Delay: Typically between 10ns and 50ns, with high-speed variants reaching as low as 3ns.
Current Consumption: Maximum supply current (ICC) is approximately 5.9 mA.
Output Drive: Can sink up to 8 mA (IOL) and source up to -0.4 mA (IOH).
Temperature Range: Commercial grade (SN74ALS86) operates from 0°C to 70°C; military grade (SN54ALS86) operates from -55°C to 125°C

Additional Information

Device

Exclusive-OR Gates

Unlock the power of precision with the 74ALS86 Quadruple 2-Input Exclusive-OR Gates. Designed for reliable performance, this high-speed logic device operates efficiently within a 4.5V to 5.5V range, perfect for your electronic projects. Enjoy fast propagation delays and low current consumption, making it an ideal choice for both commercial and military applications. Upgrade your circuits with this essential component today!
