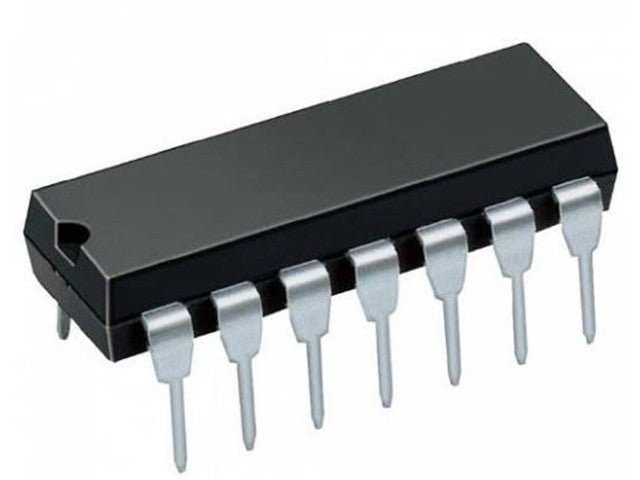

74AS20N

Name: 74AS20N - Communica [Part No: 74AS20N]
Brand: Communica
SKU: 74AS20N
Price: 19.50 ZAR
Availability: InStock

SKU: 74AS20N

BRAND: Communica

R 22.43_{(inc VAT)}
R 19.50_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Semiconductors

Type: Logic ICs

Category: Logic Gates

Dual 4-Input Positive-NAND Gates 14Pin

Specifications

Logic Function:	NAND
Number of Gates:	2 Gate
Logic Family:	AS
Number of Input Lines:	8 Input
Package/Case:	PDIP-14
Number of Output Lines:	4 Output
Low Level Output Current:	20 mA
High Level Output Current:	- 2 mA
Propagation Delay Time:	5 ns
Supply Voltage - Min:	4.5 V
Supply Voltage - Max:	5.5 V
Minimum Operating Temperature:	0 C
Maximum Operating Temperature:	+ 70 C
Mounting Style:	Through Hole
Logic Type:	4-Input NAND
Product:	Single-Function Gates
Product Type:	Logic Gates

Elevate your circuit design with the 74AS20N Dual 4-Input NAND Gates. Offering fast propagation delays and robust performance, this reliable logic component ensures efficient data processing in various applications. Perfect for enhancing your projects, it operates within a wide voltage range for versatile compatibility. Experience precision and durability with every use!
