74AS873

Name: 74AS873 - Communica [Part No: 74AS873]
Brand: Communica
SKU: 74AS873
Price: 119 ZAR
Availability: InStock

SKU: 74AS873

BRAND: Communica

R 136.85_{(inc VAT)}
R 119.00_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Semiconductors

Type: Logic ICs

Category: IC - Latches

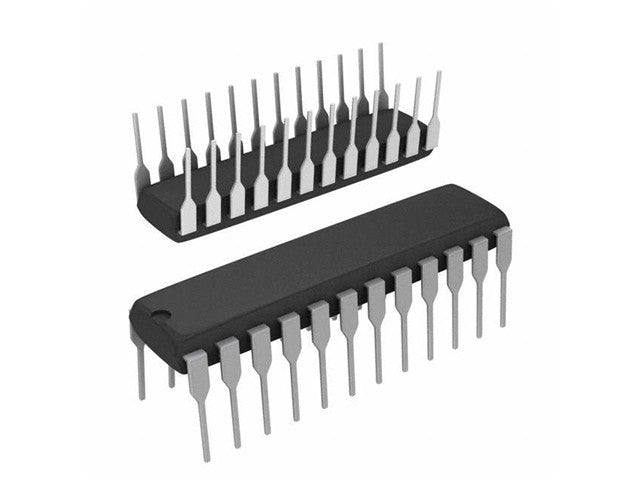

74AS873 24PIN DIP

Specifications

Logic Family: Advanced Schottky TTL (AS)
Function: 8-bit latch organized as two independent 4-bit transparent latches with tri-state outputs.
Number of Bits: 8
Configuration: Dual 4-bit transparent latches
Output Type: 3-State (Tri-State)
Logic Type: D-Type Transparent Latch
Supply Voltage (VCC):
- 4.5 V to 5.5 V
- Nominal: 5 V
Propagation Delay:
- Approximately 3 ns (AS family high-speed operation)
Output Drive Capability:
- High-level output current (IOH): -15 mA
- Low-level output current (IOL): 48 mA
- Designed to drive bus lines directly.
Operating Temperature Range:
- 0°C to +70°C (commercial version)
Package Options:
- N: 24-pin PDIP (through-hole)
- Other package variants available depending on manufacturer
Pin Count:
- 24 Pins
Control Inputs:
- Latch Enable (LE)
- Output Enable (OE)
Operating Modes:
- LE High: Outputs follow inputs (transparent mode)
- LE Low: Data is latched and stored
- OE Active: Outputs enabled
- OE Inactive: Outputs in high-impedance state (Z)

Additional Information

Device

IC

Unlock high-speed performance with the 74AS873 8-bit latch, featuring dual 4-bit transparent latches and tri-state outputs. With a rapid 3 ns propagation delay, this reliable component is perfect for driving bus lines in various applications. Enhance your project's efficiency and connectivity with this advanced Schottky TTL logic family device, designed for seamless operation in a wide temperature range.
