74HC03N

Name: 74HC03N - Communica [Part No: 74HC03N]
Brand: Communica
SKU: 74HC03N
Price: 1.25 ZAR
Availability: InStock

SKU: 74HC03N

BRAND: Communica

R 1.44_{(inc VAT)}
R 1.25_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Semiconductors

Type: Logic ICs

Category: Logic Gates

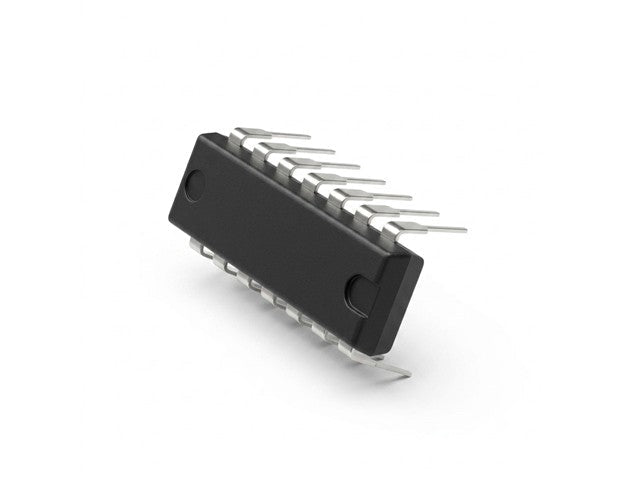

Gate NAND Positive Quad 2-Input 14PD

Specifications

Product Type: Quad 2-Input NAND Gate
Logic Family: HC CMOS
Number of Gates: 4
Inputs per Gate: 2
Logic Function: NAND
Output Type: Open-Drain
Supply Voltage (VCC): 2 V to 6 V
Logic Input Type: CMOS
Output Drive: Open-Drain (requires external pull-up resistor)
Propagation Delay: Typical 11 ns (at VCC = 5 V)
Input Current: ±1 µA (Maximum)
Quiescent Supply Current: 80 µA (Maximum)
Output Drive Current:
- Up to 5.2 mA (at VCC = 5 V)
Operating Temperature: -40°C to +125°C (manufacturer dependent)
Package Type: PDIP-14 (N Suffix)
Pin Count: 14

Additional Information

Device

IC

Enhance your circuit design with the 74HC03N Quad 2-Input NAND Gate. This reliable CMOS logic component offers fast propagation delays and versatile input voltage ranges, making it ideal for various applications. With its open-drain output and low power consumption, this IC ensures efficient performance in any project. Perfect for engineers seeking quality and reliability in their electronic designs.
