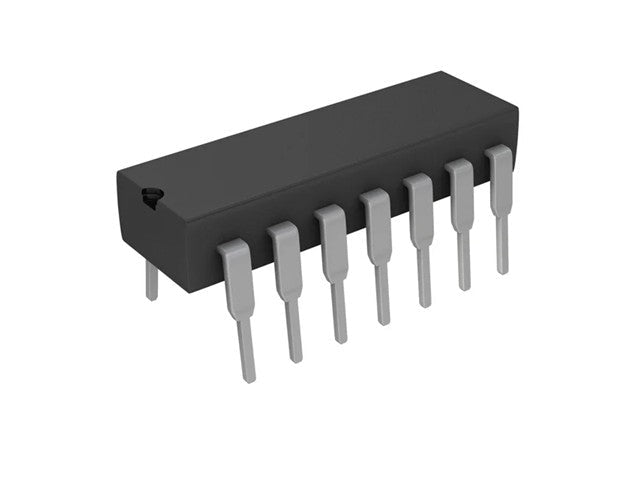

74HC132 - Logic ICs -

74HC132

SKU: 74HC132

BRAND: Communica



R 5.58 (inc VAT)
R 4.85 (ex VAT)

🚚
Delivery time: 2-5 working days for South Africa
✓
In stock - Ready for immediate dispatch
Free shipping for orders over R1,000.00

Collections: Semiconductors

Type: Logic ICs

Category: Logic Gates

Quad 2-Input NAND Gate with Schmitt-Trigger Inputs

Specifications

Logic Type
 NAND Gate
Number of Circuits
4
Number of Inputs
2
Features
Schmitt Trigger
Voltage - Supply
2V ~ 6V
Current - Quiescent (Max)
2 µA
Current - Output High, Low
5.2mA, 5.2mA
Input Logic Level - Low
0.3V ~ 1.2V
Input Logic Level - High
1.5V ~ 4.2V
Max Propagation Delay @ V, Max CL
21ns @ 6V, 50pF
Operating Temperature
-55°C ~ 125°C
Mounting Type
Through Hole
Supplier Device Package
14-PDIP
Package / Case
14-DIP (0.300", 7.62mm)

Additional Information

Device 2-Input NAND
