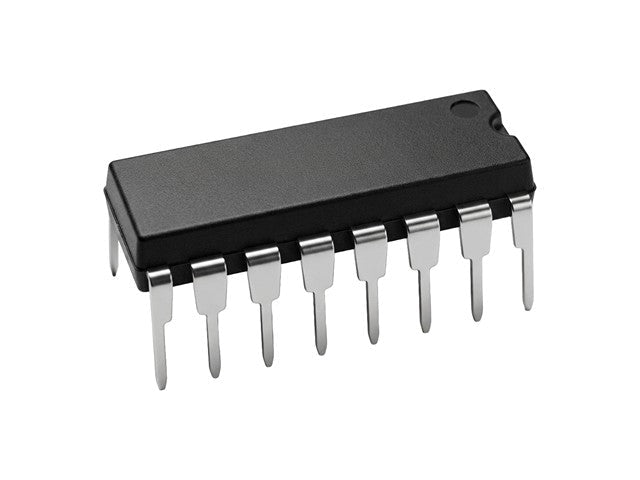

74HC266

Name: 74HC266 - Communica [Part No: 74HC266]
Brand: Communica
SKU: 74HC266
Price: 4 ZAR
Availability: InStock

SKU: 74HC266

BRAND: Communica

R 4.60_{(inc VAT)}
R 4.00_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Semiconductors

Type: Logic ICs

Category: Logic Gates

Gate NOR-Exclusive Quad 2INP14PD(25)

Specifications

Product Type: Quad 2-Input Exclusive-NOR (XNOR) Gate
Logic Family: HC CMOS
Number of Gates: 4
Inputs per Gate: 2
Logic Function: Exclusive-NOR (XNOR)
Output Type: Open-Drain
Supply Voltage (VCC): 2 V to 6 V
Logic Input Type: CMOS
Output Drive: Open-Drain (requires external pull-up resistor)
Propagation Delay: Typical 13 ns (at VCC = 5 V)
Input Current: ±1 µA (Maximum)
Quiescent Supply Current: 80 µA (Maximum)
Output Drive Current:
- ±5.2 mA (at VCC = 5 V)
Operating Temperature: -40°C to +125°C (manufacturer dependent)
Package Type:
- PDIP-14
- SOIC-14
- TSSOP-14 (manufacturer dependent)
Pin Count: 14

Feature

Four independent 2-input XNOR gates
Open-drain outputs for wired logic and level shifting
High-speed CMOS operation
Low power consumption
High noise immunity
Wide operating voltage range

Additional Information

Device

IC

Elevate your electronic projects with the 74HC266 Quad 2-Input Exclusive-NOR Gate. Designed for high-speed performance and low power consumption, this versatile CMOS logic device offers four independent gates with open-drain outputs, perfect for wired logic applications and level shifting. With a wide operating voltage range and robust noise immunity, the 74HC266 is ideal for reliable circuit designs in various environments.
