74HC27

Name: 74HC27 - Communica [Part No: 74HC27]
Brand: Communica
SKU: 74HC27
Price: 3.16 ZAR
Availability: InStock

SKU: 74HC27

BRAND: Communica

R 3.63_{(inc VAT)}
R 3.16_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Semiconductors

Type: Logic ICs

Category: Logic Gates

Gate NOR Positive Triple 3-Input 14PD(25)

Specifications

Logic Type: Triple 3-input NOR gate
Number of Gates: 3
Inputs per Gate: 3
Logic Function: Positive NOR ( +VE NOR )
Supply Voltage (VCC): 2 V – 6 V
Typical Supply Voltage: 5 V
Output Current: ±5.2 mA (typical at 5 V)
Propagation Delay: ~8 ns (typical at 5 V)
Input Type: CMOS high-impedance inputs

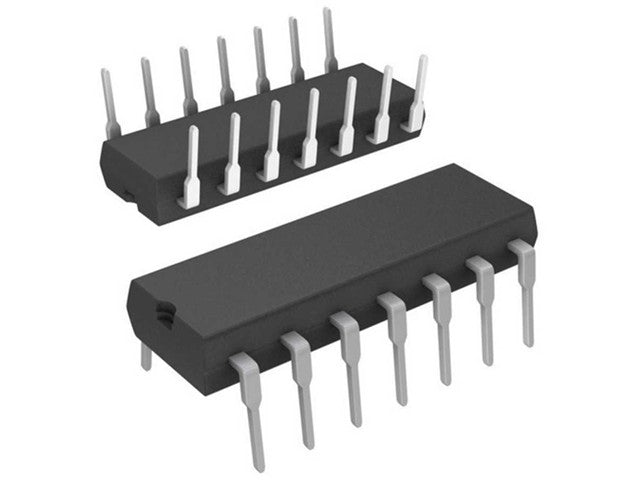

Package Type: DIP-14 (Dual In-line Package)
Operating Temperature Range: −40 °C to +85 °C
Logic Family: HC (High-Speed CMOS)
Pin Count: 14 pins

Applications:

Digital logic circuits
Control systems
Signal inversion and logic combination
Embedded and microcontroller interfacing

Elevate your digital projects with the 74HC27 Triple 3-Input NOR Gate. This high-speed CMOS logic chip ensures reliable performance with minimal propagation delay of just 8 ns. Ideal for control systems and signal inversion, it operates efficiently within a wide voltage range of 2V to 6V, making it perfect for embedded applications. Optimize your designs with this versatile and robust logic solution.
