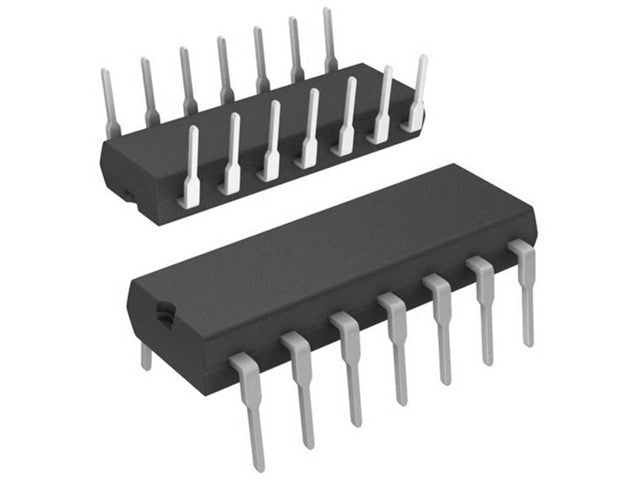

74HC30

Name: 74HC30 - Communica [Part No: 74HC30]
Brand: Communica
SKU: 74HC30
Price: 1.86 ZAR
Availability: InStock

SKU: 74HC30

BRAND: Communica

R 2.14_{(inc VAT)}
R 1.86_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Semiconductors

Type: Logic ICs

Category: Logic Gates

Gate NAND Positive 8-Input 14PD(25)

Specifications

Logic Type: Universal shift and storage register
Number of Bits: 8-bit
Register Type: Parallel load / serial shift register
Shift Direction: Left or right shift capability
Control Inputs: Mode control inputs for hold, shift left, shift right, and parallel load
Clock Trigger: Positive-edge triggered clock input
Output Type: 3-state (tri-state) outputs for bus interface
Supply Voltage (VCC): 2 V – 6 V
Typical Supply Voltage: 5 V
Propagation Delay: ~15–25 ns (typical at 5 V)
Output Current: ±5.2 mA (typical at 5 V)
Input Type: CMOS high-impedance inputs
Package Options: DIP-20, SOIC-20
Operating Temperature Range: −40 °C to +85 °C
Logic Family: HC (High-Speed CMOS)

Additional Information

Device

Logic Gate

Experience high-speed performance with the 74HC30 NAND Gate, perfect for your electronic projects. This 8-input logic device supports parallel load and serial shift, ensuring versatile functionality with low propagation delay. Operate efficiently between 2V to 6V, making it ideal for a wide range of applications. Enhance your designs with reliable, tri-state outputs for seamless bus interfacing.
