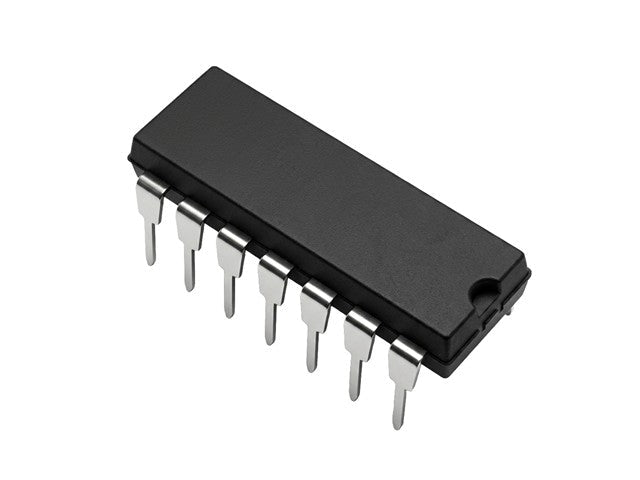

74HC534

Name: 74HC534 - Communica [Part No: 74HC534]
Brand: Communica
SKU: 74HC534
Price: 6.95 ZAR
Availability: InStock

SKU: 74HC534

BRAND: Communica

R 7.99_{(inc VAT)}
R 6.95_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Semiconductors

Type: Logic ICs

Category: IC - Flip Flop

Flip Flop Edge-Triggered Octal Dual D-Type 20PD

Specifications

Product Type: Octal D-Type Flip-Flop
Logic Family: HC CMOS
Number of Flip-Flops: 8
Output Type: Inverting 3-State Outputs
Trigger Type: Positive Edge-Triggered
Supply Voltage: 2 V to 6 V
Logic Input Type: CMOS
Maximum Clock Frequency: 24 MHz
Typical Propagation Delay: 13 ns (at VCC = 5 V)
Output Drive Current:
- ±7.8 mA per output
Maximum Supply Current: 80 µA
Input Current: ±1 µA (Maximum)
Fan-Out:
- 10 LSTTL Loads (Standard Outputs)
- 15 LSTTL Loads (Bus Driver Outputs)
Operating Temperature: -55°C to +125°C
Package Options:
- PDIP-20
- SOIC-20
- TSSOP-20 (manufacturer dependent)

Feature

Eight positive edge-triggered D-type flip-flops
Inverting outputs
Common 3-state output enable (OE)
Buffered inputs
Bus-oriented pin configuration
High-speed CMOS operation
Low power consumption
High noise immunity

Additional Information

Device

IC

The 74HC534 is a high-performance Octal D-Type Flip-Flop, ideal for your digital logic projects. With eight edge-triggered flip-flops, it ensures reliable data storage with low power consumption and high-speed operation up to 24 MHz. Experience superior noise immunity and seamless integration in various applications, making it a perfect choice for both hobbyists and professionals. Upgrade your designs with this efficient and versatile CMOS solution.
