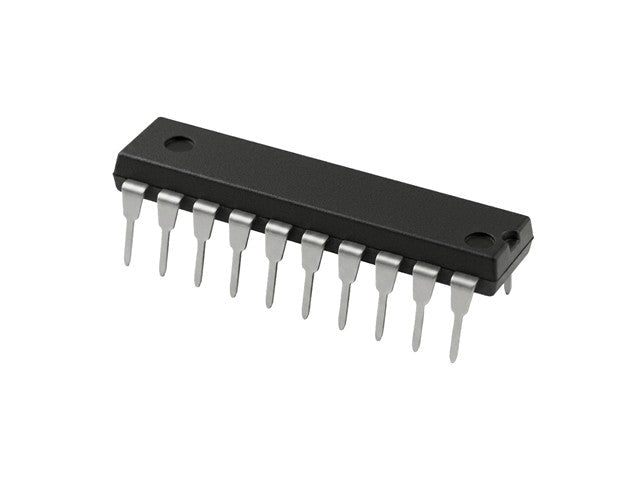

74HC574

Name: 74HC574 - Communica [Part No: 74HC574]
Brand: Communica
SKU: 74HC574
Price: 4.85 ZAR
Availability: InStock

SKU: 74HC574

BRAND: Communica

R 5.58_{(inc VAT)}
R 4.85_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Semiconductors

Type: Logic ICs

Category: IC - Flip Flop

Flip Flop Edge-Triggered 3ST O/P 20PD(18)

Specifications

Product Type: Octal D-Type Flip-Flop
Logic Family: HC CMOS
Number of Flip-Flops: 8
Output Type: Non-Inverting 3-State Outputs
Trigger Type: Positive Edge-Triggered
Supply Voltage: 2 V to 6 V
Logic Input Type: CMOS
Maximum Clock Frequency: 36 MHz
Typical Propagation Delay: 13 ns (at VCC = 5 V)
Output Drive Current:
- ±7.8 mA per output
Maximum Supply Current: 80 µA
Input Current: ±1 µA (Maximum)
Fan-Out:
- 10 LSTTL Loads (Standard Outputs)
- 15 LSTTL Loads (Bus Driver Outputs)
Operating Temperature: -55°C to +125°C
Package Options:
- PDIP-20
- SOIC-20
- TSSOP-20 (manufacturer dependent)

Feature

Eight positive edge-triggered D-type flip-flops
Non-inverting outputs
Common 3-state output enable (OE)
Buffered inputs
Bus-oriented pin configuration
High-speed CMOS operation
Low power consumption
High noise immunity

Additional Information

Device

IC

Enhance your digital circuit designs with the 74HC574 Octal D-Type Flip-Flop. Featuring eight positive edge-triggered flip-flops, this high-speed CMOS component offers low power consumption and robust performance. With 3-state outputs and a wide supply voltage range, it's perfect for reliable data storage and transfer in your projects. Upgrade your electronic applications today!
