74HCT02M1R

Name: 74HCT02M1R - Communica [Part No: 74HCT02M1R]
Brand: Communica
SKU: 74HCT02M1R
Price: 3.75 ZAR
Availability: InStock

SKU: 74HCT02M1R

BRAND: Communica

R 4.31_{(inc VAT)}
R 3.75_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Semiconductors

Type: Logic ICs

Category: Logic Gates

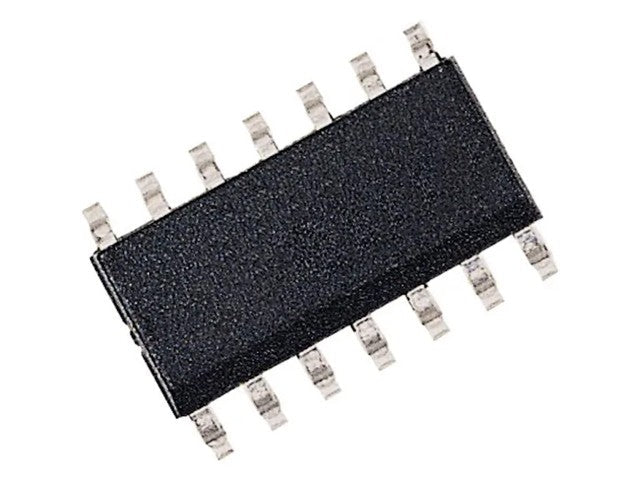

Gate NOR Positive Quad 2 Input SO-14

Specifications

Logic Function:	NOR
Number of Gates:	4 Gate
Logic Family:	HCT
Number of Input Lines:	2 Input
Package/Case:	SOIC-14
Number of Output Lines:	1 Output
Low Level Output Current:	4 mA
High Level Output Current:	- 4 mA
Propagation Delay Time:	24 ns
Supply Voltage - Min:	4.5 V
Supply Voltage - Max:	5.5 V
Minimum Operating Temperature:	- 55 C
Maximum Operating Temperature:	+ 125 C
Mounting Style:	SMD/SMT
Packaging:	Tube
Brand:	STMicroelectronics
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	SG
Logic Type:	CMOS
Product:	Single-Function Gates
Product Type:	Logic Gates

Additional Information

Device

Logic Gate

Discover the 74HCT02M1R, a reliable NOR gate from STMicroelectronics, perfect for your electronic projects. With four gates in a compact SO-14 package, it ensures efficient performance and low propagation delay of just 24 ns. Enhance your circuit designs with this high-quality logic gate that operates within a wide voltage range of 4.5V to 5.5V, making it ideal for various applications.
