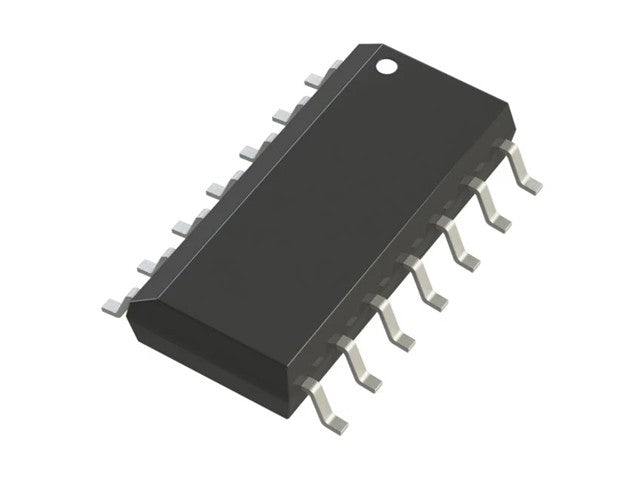

74HCT132D

SKU: 74HCT132D

BRAND: Communica

R 8.63_{(inc VAT)}
R 7.50_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Semiconductors

Type: Logic ICs

Category: Gate Drivers

Gate NAND Quad with Schitch Trigger I/Put 14P SOIC

Specifications

Logic: Gates and Inverters
Logic Type: NAND Gate
Number of Circuits: 4
Number of Inputs: 2
Features: Schmitt Trigger
Supply Voltage: 4.5 V ~ 5.5 V
Quiescent Current (Max): 2 µA
Output Current (High, Low): 4 mA, 4 mA
Input Logic Level – Low: 0.5 V ~ 0.6 V
Input Logic Level – High: 1.9 V ~ 2.1 V
Maximum Propagation Delay @ V, Max CL: 33 ns @ 4.5 V, 50 pF
Mounting Type: Surface Mount
Package / Case: 14-SOIC (0.154", 3.90 mm Width)
Supplier Device Package: 14-SO
Operating Temperature: -40°C ~ 125°C

Additional Information

Device

Gate NAND
