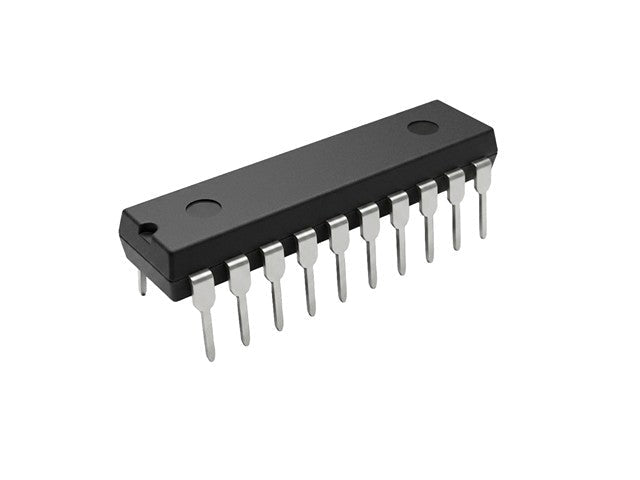

74HCT574E

Name: 74HCT574E - Communica [Part No: 74HCT574E]
Brand: Communica
SKU: 74HCT574E
Price: 12.50 ZAR
Availability: InStock

SKU: 74HCT574E

BRAND: Communica

R 14.38_{(inc VAT)}
R 12.50_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Semiconductors

Type: Logic ICs

Category: IC - Flip Flop

Flip Flop Edge-Triggered Octal D-Type 3State Output 20PD

Specifications

Product Type: Octal Edge-Triggered D-Type Flip-Flop
Logic Family: HCT
Number of Flip-Flops: 8
Output Type: 3-State Non-Inverting Outputs
Trigger Type: Positive Edge-Triggered
Supply Voltage: 4.5 V to 5.5 V
Logic Input Type: TTL-Compatible CMOS
Maximum Clock Frequency: 28 MHz
Propagation Delay (Typical): 22 ns
Output Drive Current:
- ±6 mA per output
Maximum Supply Current: 80 µA
Input Current: ±1 µA (Maximum)
Fan-Out:
- Up to 15 LSTTL Loads
Operating Temperature: -40°C to +125°C
Package Type: 20-Pin PDIP (E Suffix)

Feature

8-bit edge-triggered register
Common output enable (OE)
High-impedance 3-state outputs
Buffered inputs
Low power CMOS design
High-speed operation
Bus-oriented pin configuration

Additional Information

Device

IC

Enhance your digital projects with the 74HCT574E Octal D-Type Flip-Flop. Featuring 8 edge-triggered registers and high-speed operation up to 28 MHz, this reliable component ensures efficient data handling and low power consumption. Ideal for TTL-compatible applications, its 3-state outputs and buffered inputs make integration seamless. Upgrade your electronics with this versatile and durable logic device today!
