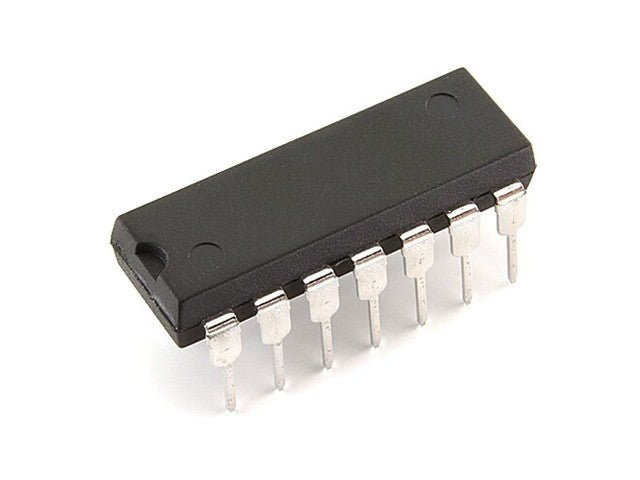

74LS02

SKU: 74LS02

BRAND: Communica

R 8.68_{(inc VAT)}
R 7.55_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Semiconductors

Type: Logic ICs

Category: Logic Gates

Gate NOR Quad 2 Input +VE 14

Specifications

Logic Function: NOR (Y = ¬(A + B))
Number of Gates: 4
Inputs per Gate: 2
Output Type: Standard TTL output
Logic Level: Positive logic (+VE)
Package: 14-pin DIP or other variants (SOIC, TSSOP)
Operating Voltage (Vcc): 4.75V – 5.25V typical
Propagation Delay: ~10 ns (typical)
Fan-Out: 10 (can drive 10 standard TTL inputs)

Additional Information

Device

Gate NOR
