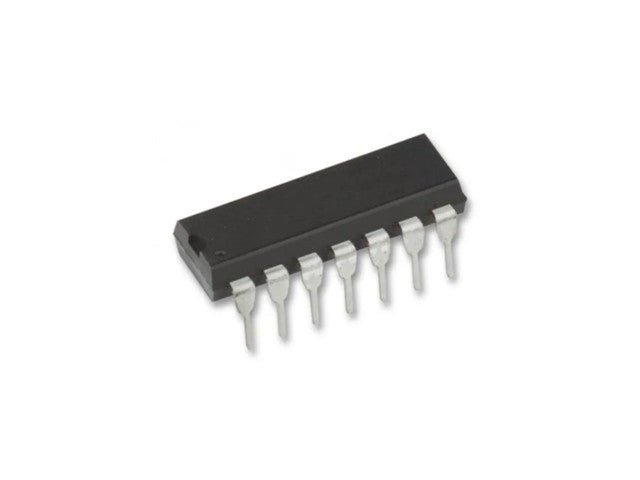

74LS10

Name: 74LS10 - Communica [Part No: 74LS10]
Brand: Communica
SKU: 74LS10
Price: 15.25 ZAR
Availability: InStock

SKU: 74LS10

BRAND: Communica

R 17.54_{(inc VAT)}
R 15.25_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over ZAR 1,000.00

Collections: Semiconductors

Type: Logic ICs

Category: Logic Gates

Gate NAND POS Triple 3INP 14PD

Specifications

Electrical Characteristics

Supply Voltage (Vcc): 4.75V – 5.25V
Input Voltage (VIH): Min 2V for logic HIGH
Input Voltage (VIL): Max 0.8V for logic LOW
Output Voltage High (VOH): Min 2.7V at IOH = –0.4 mA
Output Voltage Low (VOL): Max 0.5V at IOL = 8 mA
Propagation Delay (tpd): Typical 10 ns
Power Dissipation: Approx. 2 mW per gate

Absolute Maximum Ratings

Supply Voltage (Vcc): 7V
Input Voltage: –0.5V to 7V
Operating Temperature: 0°C to +70°C (Commercial)
Storage Temperature: –65°C to +150°C

Additional Information

Device

IC

Enhance your electronic projects with the 74LS10 NAND Gate IC. Offering fast propagation delays of just 10 ns and low power dissipation, this reliable component ensures high performance for your logic circuit needs. With a wide operating voltage range and robust temperature tolerance, it’s perfect for both commercial and industrial applications. Upgrade your designs with this essential, efficient IC today!
