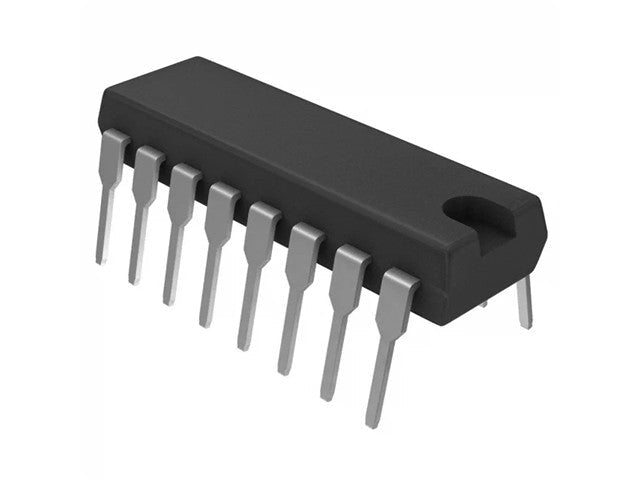

74LS109AN - Logic ICs -

74LS109AN

SKU: 74LS109AN

BRAND: Communica



R 16.45 (inc VAT)
R 14.30 (ex VAT)

🚚
Delivery time: 2-5 working days for South Africa
✓
In stock - Ready for immediate dispatch
Free shipping for orders over ZAR 1,000.00

Collections: Semiconductors

Type: Logic ICs

Category: Flip-Flops

Dual J-K Flip-Flop with Inverted K Input, Positive-Edge-Triggered

Specifications

Function

Set(Preset) and Reset

Type

JK Type

Output Type

Complementary

Number of Elements

2

Number of Bits per Element

1

Clock Frequency

33 MHz

Max Propagation Delay @ V, Max CL

40ns @ 5V, 15pF

Trigger Type

Positive Edge

Current - Output High, Low

400µA, 8mA

Voltage - Supply

4.75V ~ 5.25V

Current - Quiescent (Iq)

8 mA

Operating Temperature

0°C ~ 70°C (TA)

Mounting Type

Through Hole

Supplier Device Package

16-PDIP

Package / Case

16-DIP (0.300", 7.62mm)



Additional Information

Device IC
