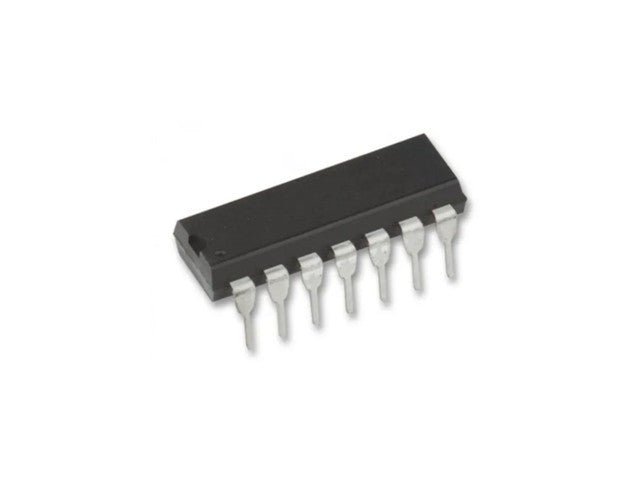

74LS11

Name: 74LS11 - Communica [Part No: 74LS11]
Brand: Communica
SKU: 74LS11
Price: 14.50 ZAR
Availability: InStock

SKU: 74LS11

BRAND: Communica

R 16.68_{(inc VAT)}
R 14.50_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over ZAR 1,000.00

Collections: Semiconductors

Type: Logic ICs

Category: Logic Gates

GATE AND POS Triple 3-Input 14PD

Specifications

Electrical Characteristics

Supply Voltage (Vcc): 4.75V – 5.25V
Input Voltage High (VIH): Min 2V
Input Voltage Low (VIL): Max 0.8V
Output Voltage High (VOH): Min 2.7V at IOH = –0.4 mA
Output Voltage Low (VOL): Max 0.5V at IOL = 8 mA
Propagation Delay (tpd): Typical 10 ns
Power Dissipation: Approx. 2 mW per gate

Absolute Maximum Ratings

Supply Voltage (Vcc): 7V
Input Voltage: –0.5V to 7V
Operating Temperature: 0°C to +70°C (Commercial)
Storage Temperature: –65°C to +150°C

Additional Information

Device

IC

Unlock superior performance with the 74LS11 Triple 3-Input NAND Gate. Offering rapid 10 ns propagation delay and low power dissipation, this reliable IC enhances your electronic projects with efficiency and precision. Perfect for commercial applications, it ensures robust operation in various temperatures, making it an essential component for any electronics enthusiast.
