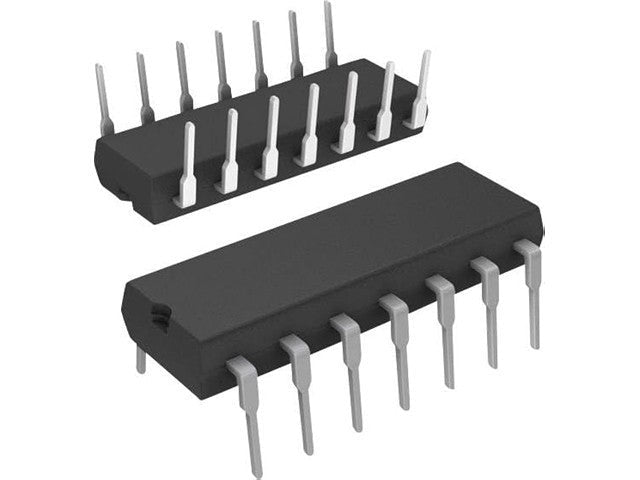

74LS114AN

Name: 74LS114AN - Communica [Part No: 74LS114AN]
Brand: Communica
SKU: 74LS114AN
Price: 2.76 ZAR
Availability: InStock

SKU: 74LS114AN

BRAND: Communica

R 3.17_{(inc VAT)}
R 2.76_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over ZAR 1,000.00

Collections: Semiconductors

Type: Logic ICs

Category: Flip-Flops

Dual JK Negative Edge-Triggered Flip-Flop

Specifications

Electrical Characteristics

Supply Voltage (Vcc): 4.75V – 5.25V
Input Voltage High (VIH): Min 2V
Input Voltage Low (VIL): Max 0.8V
Output Voltage High (VOH): Min 2.7V at IOH = –0.4 mA
Output Voltage Low (VOL): Max 0.5V at IOL = 8 mA
Propagation Delay (Clock to Q): Typical 15 ns
Power Dissipation: Approx. 20 mW per device

Absolute Maximum Ratings

Supply Voltage (Vcc): 7V
Input Voltage: –0.5V to 7V
Operating Temperature: 0°C to +70°C (Commercial)
Storage Temperature: –65°C to +150°C

Additional Information

Device

IC

Unlock reliable performance with the 74LS114AN Dual JK Negative Edge-Triggered Flip-Flop. Designed for efficient data storage and processing, it features fast propagation delays of just 15 ns and operates on a wide voltage range. Enhance your electronic projects with this versatile IC, ensuring low power dissipation and robust functionality. Perfect for both commercial and industrial applications!
