74LS12

Name: 74LS12 - Communica [Part No: 74LS12]
Brand: Communica
SKU: 74LS12
Price: 1.87 ZAR
Availability: InStock

SKU: 74LS12

BRAND: Communica

R 2.15_{(inc VAT)}
R 1.87_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over ZAR 1,000.00

Collections: Semiconductors

Type: Logic ICs

Category: Logic Gates

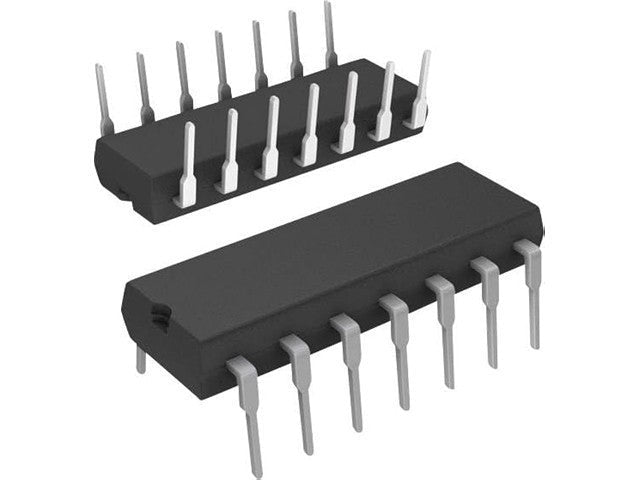

3-Input Positive-NAND Gates with Collector Outputs 14PD

Specifications

Electrical Characteristics

Supply Voltage (Vcc): 4.75V – 5.25V
Input Voltage High (VIH): Min 2V
Input Voltage Low (VIL): Max 0.8V
Output Voltage High (VOH): Min 2.7V at IOH = –0.4 mA
Output Voltage Low (VOL): Max 0.5V at IOL = 8 mA
Propagation Delay (tpd): Typical 10 ns
Power Dissipation: Approx. 2 mW per gate

Absolute Maximum Ratings

Supply Voltage (Vcc): 7V
Input Voltage: –0.5V to 7V
Operating Temperature: 0°C to +70°C (Commercial)
Storage Temperature: –65°C to +150°C

Additional Information

Device

IC

Unlock your project's potential with the 74LS12, a reliable 3-input positive-NAND gate that ensures fast and efficient performance. With a low power dissipation of just 2 mW per gate and a typical propagation delay of only 10 ns, this versatile IC is perfect for optimizing your electronic designs. Experience superior functionality and durability, making it an essential component for your next innovation.
