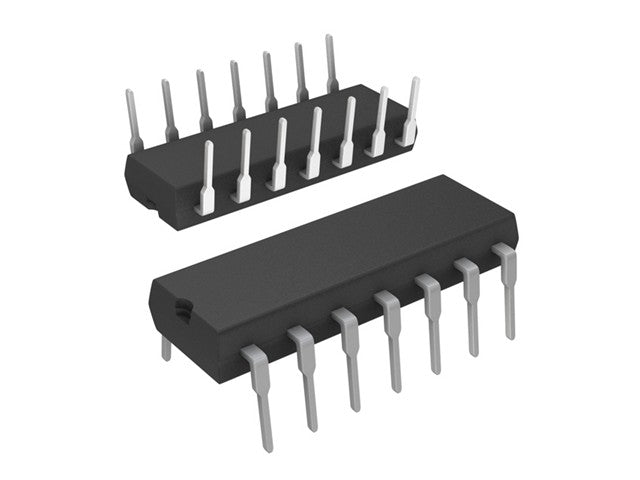

74LS122

Name: 74LS122 - Communica [Part No: 74LS122]
Brand: Communica
SKU: 74LS122
Price: 13.95 ZAR
Availability: InStock

SKU: 74LS122

BRAND: Communica

R 16.04_{(inc VAT)}
R 13.95_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over ZAR 1,000.00

Collections: Semiconductors

Type: Logic ICs

Category: Multivibrator IC's

Clear Retriggerable Monostable Multivibrator

Specifications

Electrical Characteristics

Supply Voltage (Vcc): 4.75V – 5.25V
Input Voltage High (VIH): Min 2V
Input Voltage Low (VIL): Max 0.8V
Output Voltage High (VOH): Min 2.7V at IOH = –0.4 mA
Output Voltage Low (VOL): Max 0.5V at IOL = 8 mA
Propagation Delay: Typical 15 ns
Power Dissipation: Approx. 20 mW per device

Absolute Maximum Ratings

Supply Voltage (Vcc): 7V
Input Voltage: –0.5V to 7V
Operating Temperature: 0°C to +70°C (Commercial)
Storage Temperature: –65°C to +150°C

Additional Information

Device

IC

The 74LS122 Clear Retriggerable Monostable Multivibrator is your go-to solution for reliable timing applications. With a fast typical propagation delay of 15 ns and low power dissipation, it ensures efficient performance in various electronic circuits. Enhance your projects with this versatile IC, designed for stability and precision in a wide temperature range.
