74LS13

Name: 74LS13 - Communica [Part No: 74LS13]
Brand: Communica
SKU: 74LS13
Price: 8.75 ZAR
Availability: InStock

SKU: 74LS13

BRAND: Communica

R 10.06_{(inc VAT)}
R 8.75_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over ZAR 1,000.00

Collections: Semiconductors

Type: Logic ICs

Category: Logic Gates

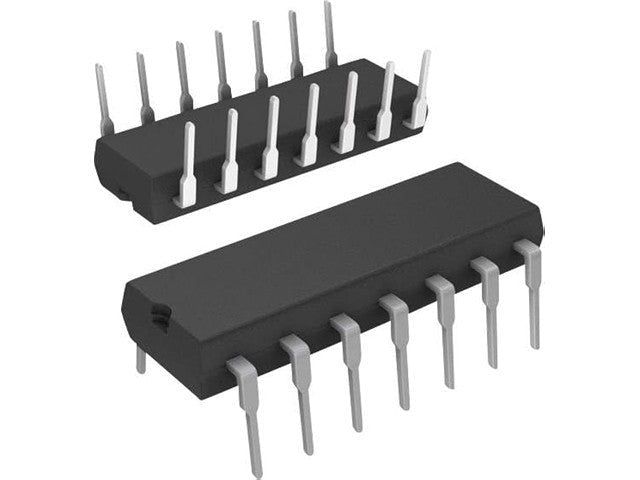

Schmitt Trigger NAND Dual 4 INP 14

Specifications

Logic Function: Dual 4-input NAND Gates.
Input Type: Schmitt Trigger (offers improved noise immunity).
Technology: Low-power Schottky TTL (Transistor-Transistor Logic).
Hysteresis: Typically 800 mV, enhancing stability.
Operating Voltage : Typically 5V.
Output Type: Totem-pole.
Package: Commonly 14-pin DIP.
Applications: Signal conditioning, debounce circuits, square wave generation.

Pin Configuration (14-Pin):

Inputs: 1A, 1B, 1C, 1D (Gate 1), 2A, 2B, 2C, 2D (Gate 2).
Outputs: 1Y (Gate 1), 2Y (Gate 2).
Power: (Pin 14), GND (Pin 7)

Additional Information

Device

IC

Upgrade your electronics with the 74LS13 Schmitt Trigger NAND dual 4-input gates, designed for enhanced noise immunity and stability. Operating at 5V, this low-power Schottky TTL component is perfect for signal conditioning and square wave generation. Experience reliable performance in your projects with this essential 14-pin IC, ensuring efficient operation and minimal interference.
