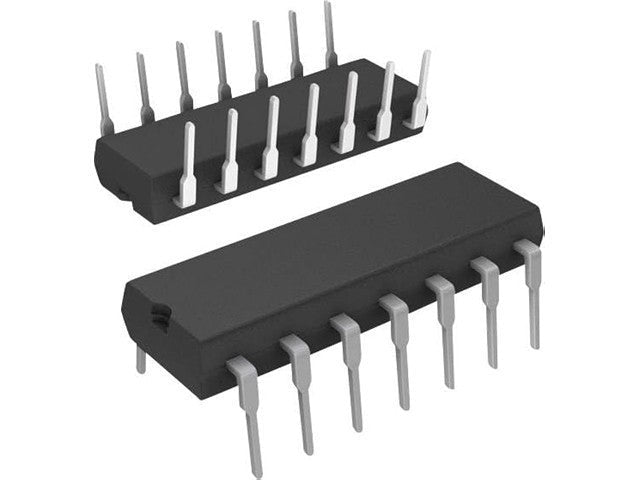

Quad 2-Input Exclusive-OR (XOR) Gates

Specifications

Electrical Characteristics

Supply Voltage (Vcc): 4.75V – 5.25V
Nominal Supply Voltage: 5V
Input Voltage High (VIH): Min 2V
Input Voltage Low (VIL): Max 0.8V
Output Low Voltage (VOL): Max 0.5V at IOL = 8 mA
Output High Voltage (VOH): Determined by external pull-up resistor
Propagation Delay (tpd): Typical 10–15 ns
Power Dissipation: Approx. 2 mW per gate

Absolute Maximum Ratings

Supply Voltage (Vcc): 7V
Input Voltage: –0.5V to 7V
Operating Temperature Range: 0°C to +70°C (Commercial)
Storage Temperature Range: –65°C to +150°C

Additional Information

Device

IC

Enhance your electronic projects with the 74LS136 Quad 2-Input XOR Gates. Offering fast propagation delays of just 10-15 ns and low power dissipation, this IC ensures efficient performance. Ideal for reliable logic operations, it operates within a wide voltage range, making it a versatile choice for hobbyists and professionals alike. Elevate your designs with precision and efficiency today!
