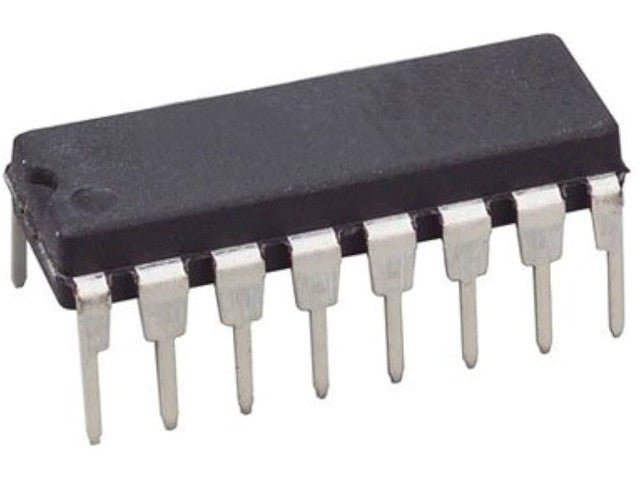

74LS139

Name: 74LS139 - Communica [Part No: 74LS139]
Brand: Communica
SKU: 74LS139
Price: 12.50 ZAR
Availability: InStock

SKU: 74LS139

BRAND: Communica

R 14.38_{(inc VAT)}
R 12.50_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over ZAR 1,000.00

Collections: Semiconductors

Type: Logic ICs

Category: Multiplexer & Demultiplexer ICs

Demultiplexer/Deco Dual 2-4LN 16PD

Specifications

Electrical Characteristics

Supply Voltage (Vcc): 4.75V – 5.25V
Nominal Voltage: 5V
Input HIGH (VIH): ≥ 2.0V
Input LOW (VIL): ≤ 0.8V
Output HIGH (VOH): ≥ 2.7V @ IOH = –0.4 mA
Output LOW (VOL): ≤ 0.5V @ IOL = 8 mA
Propagation Delay (tpd): Typical 15 ns
Power Dissipation: Approx. 20 mW per device

Functional Characteristics

Address Inputs per Decoder: 2 (A, B)
Outputs per Decoder: 4 (Y0 – Y3, active LOW)
Enable Input per Decoder: 1 (active LOW)
Logic Function: When enable is active, one output goes LOW depending on the binary combination of the address inputs.

Absolute Maximum Ratings

Vcc: 7V
Input Voltage: –0.5V to 7V
Operating Temperature: 0°C to +70°C
Storage Temperature: –65°C to +150°C

Additional Information

Device

IC

Upgrade your projects with the 74LS139 Dual 2-4 Line Demultiplexer. This reliable IC offers fast performance with a typical propagation delay of just 15 ns, ensuring efficient data routing. With low power dissipation and robust input/output features, it’s perfect for enhancing your electronic designs. Experience seamless connectivity and superior functionality today!
