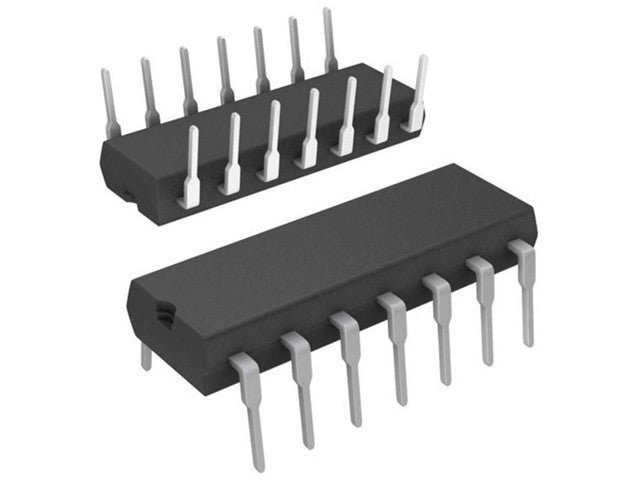

74LS14

Name: 74LS14 - Communica [Part No: 74LS14]
Brand: Communica
SKU: 74LS14
Price: 2.50 ZAR
Availability: InStock

SKU: 74LS14

BRAND: Communica

R 2.88_{(inc VAT)}
R 2.50_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over ZAR 1,000.00

Collections: Semiconductors

Type: Logic ICs

Category: IC - Inverters

Hex Inverter with Schmitt Trigger Inputs

Specifications

Electrical Characteristics

Supply Voltage (Vcc): 4.75V – 5.25V
Nominal Voltage: 5V
Input HIGH (VIH): ~1.6V (typical threshold upper)
Input LOW (VIL): ~0.8V (typical threshold lower)
Hysteresis Voltage: ~0.8V (typical)
Output HIGH (VOH): ≥ 2.7V @ –0.4 mA
Output LOW (VOL): ≤ 0.5V @ 8 mA
Propagation Delay: ~15 ns (typical)
Power Dissipation: Approx. 2 mW per gate

Absolute Maximum Ratings

Vcc: 7V
Input Voltage: –0.5V to 7V
Operating Temperature: 0°C to +70°C
Storage Temperature: –65°C to +150°C

Functional Characteristics

Inputs per Gate: 1
Outputs per Gate: 1
Logic Function: Inverter (NOT) with Schmitt Trigger
Output Type: Totem-pole TTL

Additional Information

Device

IC

Elevate your circuit design with the 74LS14 Hex Inverter featuring Schmitt Trigger inputs. This reliable TTL inverter ensures fast switching, low power dissipation, and excellent noise immunity for robust performance. Perfect for enhancing signal integrity in your electronic projects, it operates within a voltage range of 4.75V to 5.25V, providing versatility and efficiency. Choose the 74LS14 for dependable logic control in any application.
