74LS153

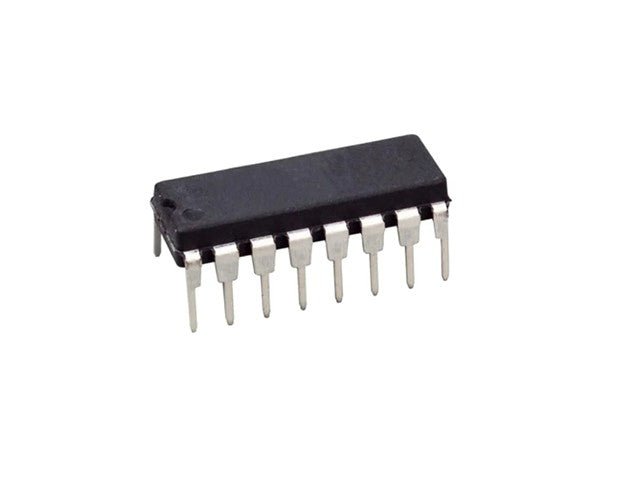

Name: 74LS153 - Communica [Part No: 74LS153]
Brand: Communica
SKU: 74LS153
Price: 9.25 ZAR
Availability: InStock

SKU: 74LS153

BRAND: Communica

R 10.64_{(inc VAT)}
R 9.25_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over ZAR 1,000.00

Collections: Semiconductors

Type: Logic ICs

Category: Multiplexer & Demultiplexer ICs

Data Select/ Multiplexer Dual 4-1Line 16PD

Specifications

Electrical Characteristics

Supply Voltage (Vcc): 4.75V – 5.25V
Nominal Voltage: 5V
Input HIGH (VIH): ≥ 2V
Input LOW (VIL): ≤ 0.8V
Output HIGH (VOH): ≥ 2.7V @ IOH = –0.4 mA
Output LOW (VOL): ≤ 0.5V @ IOL = 8 mA
Propagation Delay (tpd): Typical 15 ns
Power Dissipation: Approx. 20 mW

Absolute Maximum Ratings

Vcc: 7V
Input Voltage: –0.5V to 7V
Operating Temperature: 0°C to +70°C
Storage Temperature: –65°C to +150°C

Functional Characteristics

Number of Multiplexers: 2
Inputs per MUX: 4 (D0–D3 for MUX1, D4–D7 for MUX2)
Output per MUX: 1 (Y, Y’)
Select Inputs: 2 common select lines (S0, S1)
Enable Inputs: 2 (one per multiplexer, active LOW)
Logic Function: Routes selected input to output based on select lines and enable status

Additional Information

Device

IC

Discover the 74LS153 Dual 4-to-1 Line Multiplexer, a reliable solution for efficient data routing in your electronic projects. With a fast propagation delay of just 15 ns and low power dissipation, it ensures optimal performance while keeping energy costs down. Enhance your circuit design with this versatile multiplexer that simplifies input selection and boosts functionality. Perfect for both hobbyists and professionals, elevate your electronics experience today!
