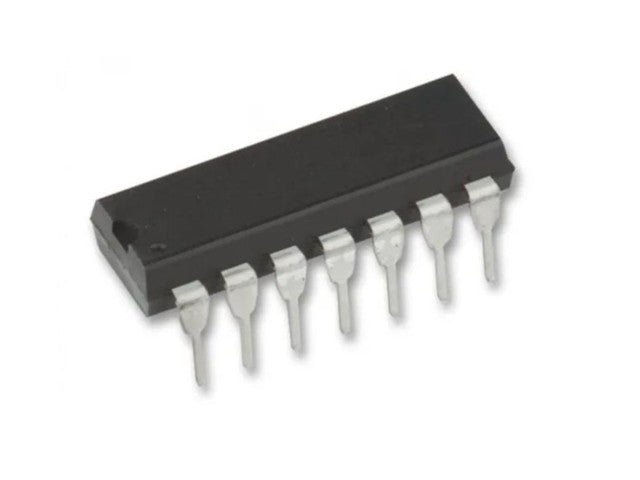

74LS51

Name: 74LS51 - Communica [Part No: 74LS51]
Brand: Communica
SKU: 74LS51
Price: 4.63 ZAR
Availability: InStock

SKU: 74LS51

BRAND: Communica

R 5.32_{(inc VAT)}
R 4.63_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Semiconductors

Type: Logic ICs

Category: Logic Gates

Gate AND-OR-Invert 14PD

Specifications

Logic Function:	MUX Gates
Logic Family:	LS
Number of Gates:	2 Gate
Number of Input Lines:	2 Input
Number of Output Lines:	1 Output
High Level Output Current:	– 16 mA
Low Level Output Current:	0.4 mA
Propagation Delay Time:	20 ns
Supply Voltage – Max:	5.25 V
Supply Voltage – Min:	4.75 V
Minimum Operating Temperature:	0 C
Maximum Operating Temperature:	+ 70 C
Mounting Style:	Through Hole
Package/Case:	PDIP-14
Function:	AND-OR-Invert
Height:	4.57 mm
Input Type:	TTL
Length:	19.3 mm
Operating Temperature Range:	0 C to + 70 C
Output Type:	TTL
Series:	SN74LS51
Width:	6.35 mm
Logic Type:	2-Input AND-OR-INVERT
Number of Bits:	2 bit
Operating Supply Current:	14 uA
Operating Supply Voltage:	5 V
Product Type:	Logic Gates
Factory Pack Quantity:	25
Subcategory:	Logic ICs
Unit Weight:	1 g

Additional Information

Device

IC

Enhance your digital designs with the 74LS51 AND-OR-Invert logic gate. This reliable 2-input multiplexer features low propagation delay and operates efficiently at 5V, making it ideal for high-speed applications. With a compact PDIP-14 package, it ensures easy integration into any project. Unlock superior performance in your circuits today!
