74V1G00

Name: 74V1G00 - Communica [Part No: 74V1G00]
Brand: Communica
SKU: 74V1G00
Price: 2.62 ZAR
Availability: InStock

SKU: 74V1G00

BRAND: Communica

R 3.01_{(inc VAT)}
R 2.62_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Semiconductors

Type: Logic ICs

Category: Logic Gates

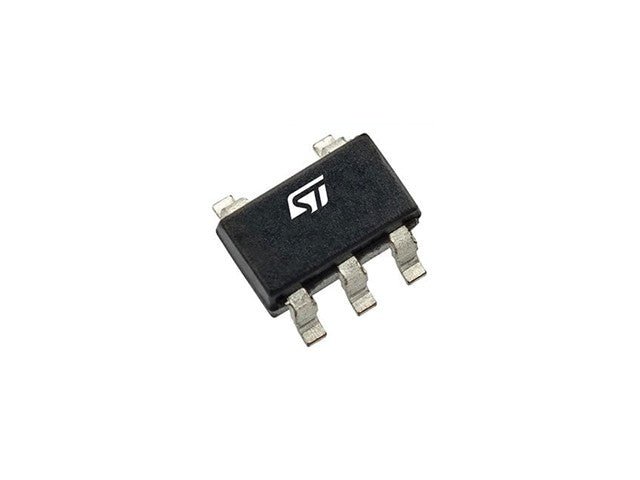

NAND Gate 2 Input Single SOT23-5L

Specifications

Logic Type	NAND Gate
Number of Circuits	1
Number of Inputs	2
Voltage - Supply	2V ~ 5.5V
Current - Quiescent (Max)	1 µA
Current - Output High, Low	8mA, 8mA
Input Logic Level - Low	0.5V
Input Logic Level - High	1.5V
Max Propagation Delay @ V, Max CL	7.5ns @ 5V, 50pF
Operating Temperature	-55°C ~ 125°C
Mounting Type	Surface Mount
Supplier Device Package	SOT-23-5
Package / Case	SC-74A, SOT-753

Additional Information

Device

IC

Enhance your electronic projects with the 74V1G00 NAND Gate, featuring dual inputs and a compact SOT23-5 package. Operating efficiently between 2V and 5.5V, it delivers reliable performance with minimal power consumption. Ideal for high-speed applications, this logic gate ensures quick propagation delays and operates in extreme temperatures, making it a versatile choice for your designs.
