75114

Name: 75114 - Communica [Part No: 75114]
Brand: Communica
SKU: 75114
Price: 14.95 ZAR
Availability: InStock

SKU: 75114

BRAND: Communica

R 17.19_{(inc VAT)}
R 14.95_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over ZAR 1,000.00

Collections: Semiconductors

Type: Logic ICs

Category: Buffers & Line Drivers

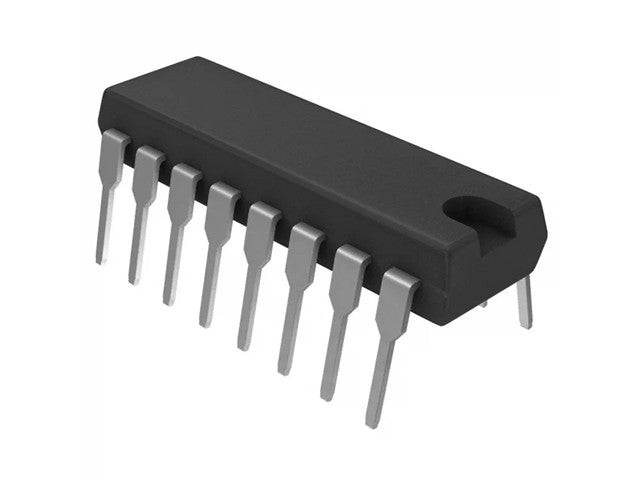

Dual Differential Line Driver 16PD

Specifications

Parameter	Value
Logic Family	TTL
Supply Voltage (Vcc)	4.75 – 5.25 V
Input Voltage (High)	2.0 V minimum
Input Voltage (Low)	0.8 V maximum
Output High Voltage (VOH)	2.4 V minimum
Output Low Voltage (VOL)	0.4 V maximum
Output Current (High, Low)	±8 mA
Power Dissipation	~40 mW typical
Propagation Delay	~15 ns typical

Feature

Dual independent differential drivers.
Converts TTL logic to differential signals.
High noise immunity for long-distance transmission.
TTL-compatible inputs.
16-pin DIP package.

Applications

RS-422 / RS-485 line driving
Data transmission over long cables
Digital communication in noisy industrial environments
Differential bus signaling

Additional Information

Keywords	Driver
Device	Driver

Enhance your data transmission with the 75114 Dual Differential Line Driver. Designed for reliability, this TTL-compatible driver converts signals for long-distance communication, ensuring high noise immunity and efficient performance in industrial settings. Ideal for RS-422/RS-485 applications, it delivers excellent output with minimal power dissipation.
