75159

Name: 75159 - Communica [Part No: 75159]
Brand: Communica
SKU: 75159
Price: 12.30 ZAR
Availability: InStock

SKU: 75159

BRAND: Communica

R 14.15_{(inc VAT)}
R 12.30_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over ZAR 1,000.00

Collections: Semiconductors

Type: Logic ICs

Category: Buffers & Line Drivers

Dual Differential Line Driver with 3-State Outputs 14PD

Specifications

Parameter	Value
Logic Family	TTL
Supply Voltage (Vcc)	4.75 – 5.25 V
Input Voltage (High)	2.0 V minimum
Input Voltage (Low)	0.8 V maximum
Differential Output Voltage	±1.5 V typical
Output Current	±20 mA per channel typical
Propagation Delay	~20 ns typical
Output Impedance	~50 Ω

Feature

Dual independent differential drivers.
TTL-to-differential conversion.
3-state outputs allow bus sharing.
High noise immunity for long-distance data transmission.

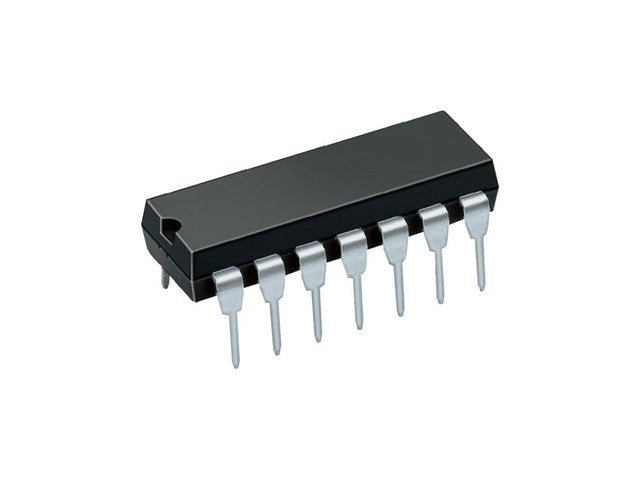

14-pin DIP package.

Applications

RS-422 / RS-485 differential bus systems
Multi-device communication networks
Industrial control and automation systems
Long-distance differential signaling with bus sharing

Additional Information

Device

Driver

Elevate your communication systems with the 75159 Dual Differential Line Driver. Designed for RS-422/RS-485 applications, it features high noise immunity and 3-state outputs for seamless bus sharing. With a compact 14-pin DIP package and reliable performance, this driver ensures efficient long-distance data transmission for industrial control and automation networks.
