75160

Name: 75160 - Communica [Part No: 75160]
Brand: Communica
SKU: 75160
Price: 14.25 ZAR
Availability: InStock

SKU: 75160

BRAND: Communica

R 16.39_{(inc VAT)}
R 14.25_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Semiconductors

Type: Interface ICs

Category: Transceiver IC's

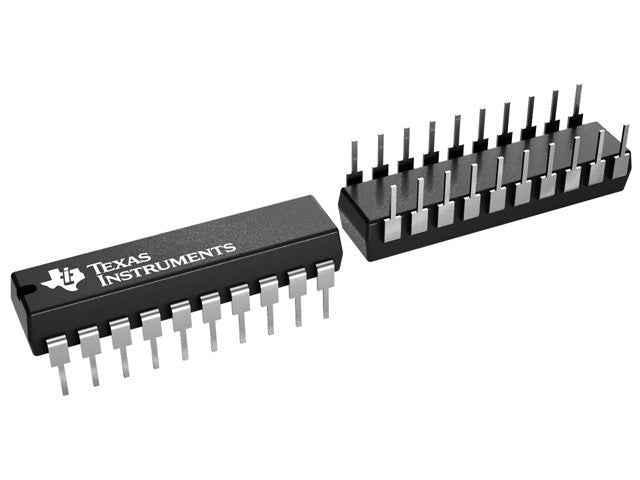

Octal General-Purpose Interface Bus Transceiver 20PD

Specifications

Parameter : Value
Logic Family : TTL
Supply Voltage (Vcc) : 4.75 – 5.25 V
Input Voltage (High) : 2.0 V minimum
Input Voltage (Low) : 0.8 V maximum
Output Voltage (High) (VOH) : 2.4 V minimum
Output Voltage (Low) (VOL) : 0.4 V maximum
Output Current : ±8 mA per line
Propagation Delay : ~20 ns typical
Output Impedance (High-Z) : Very high (~MΩ)

Feature

Octal (8-bit) bidirectional transceiver.
3-state outputs for bus sharing.
TTL-compatible inputs and outputs.
Direction control for flexible bus interfacing.
20-pin DIP package.

Applications

Microprocessor/microcontroller bus interfacing
Digital signal buffering and isolation
Bidirectional communication between memory and I/O buses
Multi-device shared bus systems

Additional Information

Device

Transceiver

Upgrade your project with the 75160 Octal General-Purpose Interface Bus Transceiver. This versatile 20-pin device offers bidirectional communication, TTL compatibility, and efficient bus sharing, making it perfect for microprocessor interfacing and digital signal buffering. Experience reliable performance with low propagation delay and high output current, ensuring seamless integration in your electronics designs.
